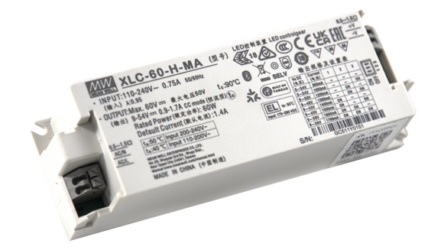

60W LED driver 900mA to 1700mA/9V...54V, Matter
CHF 71.80 excl. VAT, plus shipping costs
Description
XLC-60-H-MA is a flexible LED driver with constant current output for the direct operation of LED lighting applications. Can be dimmed wirelessly via Matter. Version for luminaire installation, without strain relief.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- Dimmable with Matter via thread
- Dimming is flicker-free with current control, no PWM at the output
Control
- Wireless with Matter via Thread
Dimming range
The dimming range is 0.5% to 100% of the selected output current.
Technical data
- Plastic housing
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Specification XLC-60-MA | PDF(202.01 KB) |
|---|---|
| Installation instructions LED driver Mean Well | PDF(1.2 MB) |
| Operating instructions XLC MA | PDF(1.6 MB) |
Downloads
| 3D Step File XLC-60 | Zip file (839.17 KB) |
|---|
Accessories
-
SR-9101-GW-MATTER
HomeKit Matter Zigbee smart home control unitCHF 119.6026 Available immediately
Similar products
-
XLC-60-H-MAS
60W LED driver 900mA to 1700mA/9V...54V, Matter, IndependentCHF 71.807 Available immediately -
FLS-42-1050-BLUE-LD-CSB-ADV-C
42W LED driver constant current 150-1050mA, 2.5-49Vdc, CasambiCHF 147.90146 Available immediately -
XLC-40-H-MA
40W LED driver 600mA to 1400mA/9V...54V, MatterCHF 61.005 Available immediately
