40W LED Driver 600mA to 1400mA/9V…54V, Matter
CHF 61.00 excl. VAT, plus shipping costs
Description

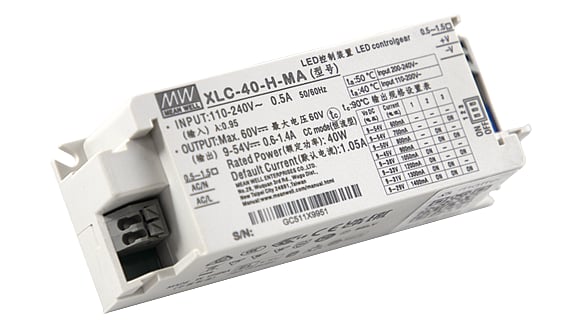

The XLC-40-H-MA is a flexible LED driver with a constant-current output designed for direct use in LED lighting applications. It is wirelessly dimmable via Matter . Version for recessed installation, without strain relief.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- Dimmable via Thread using Matter
- Dimming is flicker-free with current control, no PWM at the output
Control
- Wireless with " Matter " via Thread
Dimming range
The dimming range is 0.5% to 100% of the selected output current.
Technical data
- Plastic housing
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Specification XLC-40-MA | PDF(177.54 KB) |
|---|---|
| Installation instructions LED driver Mean Well | PDF(1.2 MB) |
| Operating instructions XLC MA | PDF(1.6 MB) |
Downloads
| 3D Step File XLC-25_XLC-40 | Zip file (560.81 KB) |
|---|
