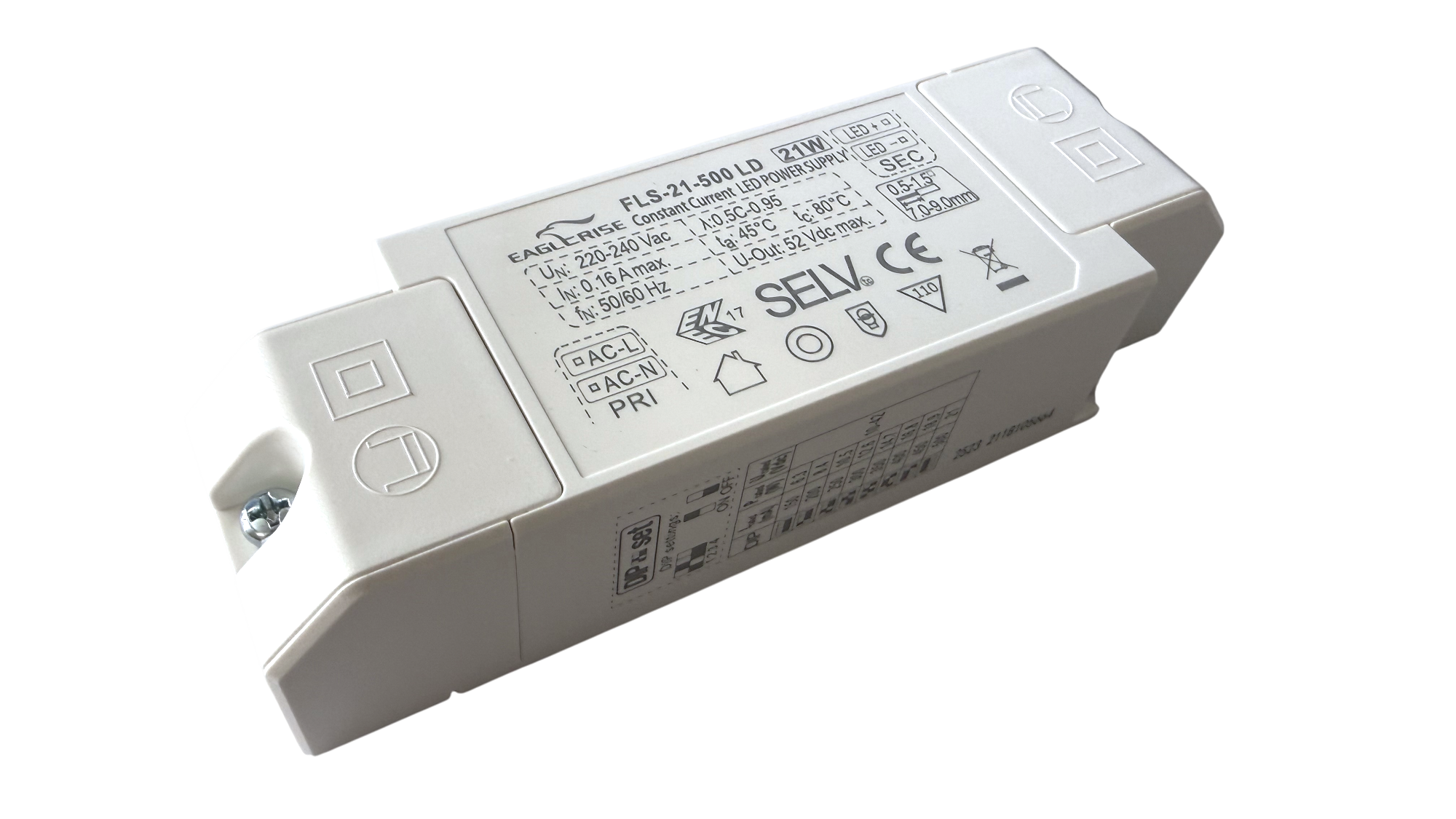

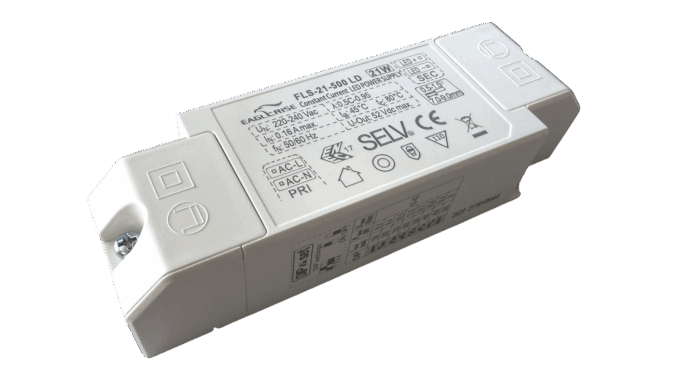

21W LED driver constant current 150-500mA, 10-42Vdc
CHF 23.70 excl. VAT, plus shipping costs
Description
The FLS-21-500 LDC LED driver with constant current output is designed for use in LED lighting applications from 150 to 500mA in a voltage range from 10 to 42Vdc. The output current can be set using a DIP switch on the device. Side covers for operation outside the luminaire are factory-fitted.
Technical data
- Forward voltage range 10 to 42Vdc
- Adjustable output currents 150 / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA
- Dimensions 97 x 43 x 30mm (L x W x H) without side cover / 130x43x30mm with side cover
- Side cover pre-installed at the factory
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet FLS-21-500 LD | PDF(1.18 MB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-21-500 LD | Zip file (61.67 KB) |
|---|
