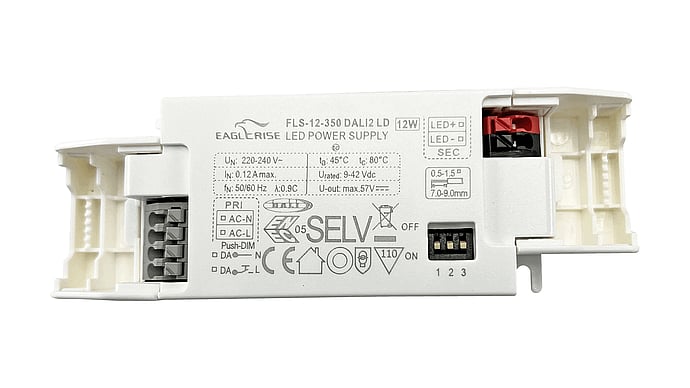

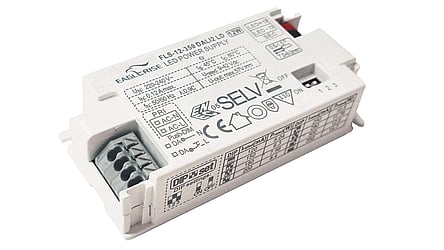

12W LED driver constant current 120-350mA, 9-42Vdc, DALI2, AC Push
CHF 47.10 excl. VAT, plus shipping costs
Description
The FLS-12-350 DALI2 LDC LED driver with constant current output is designed for the operation of LED lighting applications from 150 to 350mA in the voltage range from 9 to 42Vdc. The output current can be set using the DIP switch on the device. Side covers for operation outside the luminaire are fitted ex works. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Technical data
- Forward voltage range 9 to 42Vdc
- DALI2 and AC Push interface
- Amplitude dimming with dimming range 1...100%
- Adjustable output currents 120mA / 150mA / 180mA / 200mA / 250mA / 280mA / 300mA / 350mA

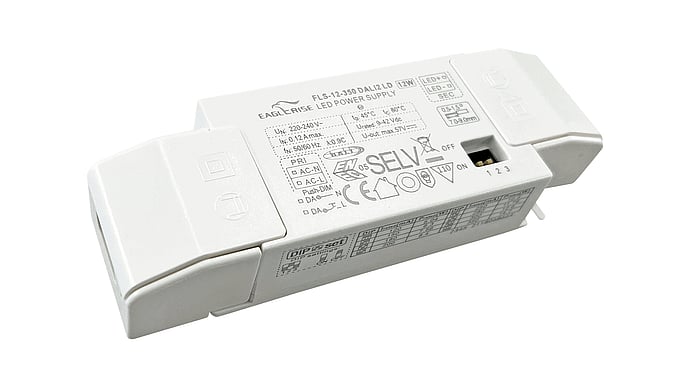

- Dimensions 85 x 40 x 21.5mm (L x W x H) without side cover / 119x40x21.5mm with side cover (factory fitted)
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-12-350 DALI2 LD | PDF(548.52 KB) |
|---|---|
| AC Push operating instructions | PDF(153 KB) |
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-12-350 DALI2 LD | Zip file (462.95 KB) |
|---|
