12W LED driver constant current 150-500mA, 9-42Vdc, DALI2
CHF 47.10 excl. VAT, plus shipping costs
Description

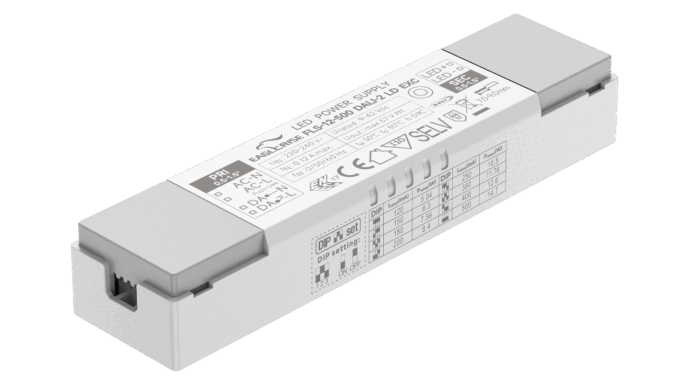

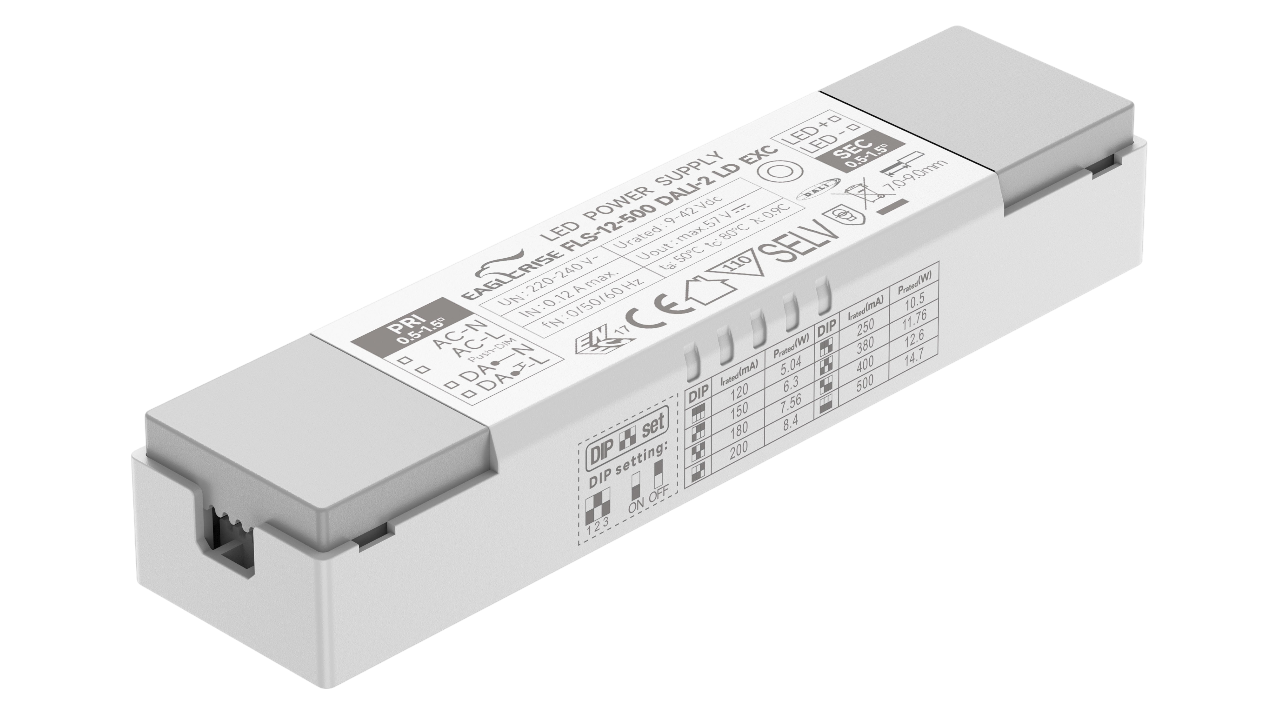

The FLS-12-500 DALI-2 LD EXC LED driver with constant current output is designed for use in LED lighting applications from 150 to 500mA in a voltage range from 9 to 42Vdc. The output current can be set using a DIP switch on the device. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Technical data
- Forward voltage range 9 to 42Vdc
- DALI2 and AC Push interface
- Amplitude dimming with dimming range 1...100%
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA
- Dimensions 126x30x20.5mm
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-12-500 DALI2 LD EXC | PDF(1.49 MB) |
|---|---|
| AC Push operating instructions | PDF(153 KB) |
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
