DIN rail power supplies

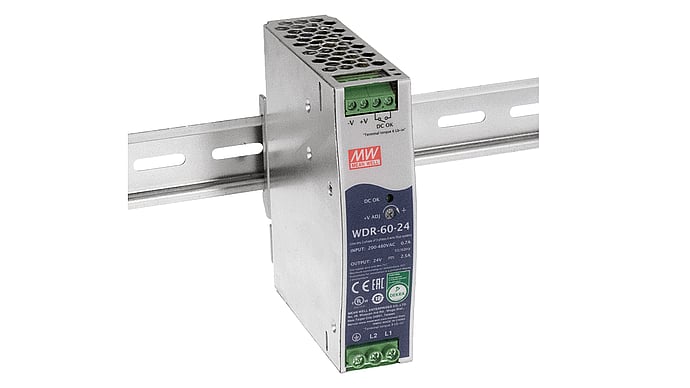

60W DIN rail power supply 24V/2.5A, 1 or 2-phase
CHF 38.50 excl. VAT, plus shipping costs
Item no:
WDR-60-24
Stock level:38 Available immediately
Packaging ex works:
28 piece
5+ CHF 38.50 CHF 36.70 (4%save)
10+ CHF 36.70 CHF 35.10 (8%save)
20+ CHF 35.10 CHF 34.10 (11%save)
Description
The WDR-60-24 DIN rail power supply unit is designed for operation with one or two phases. Thanks to the wide input range of 180 to 550Vac, the power supply unit is also particularly robust in unstable networks with high voltage peaks.
Technical data
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- Operating temperature range from -30°C to +85°C
- LED display for DC OK
- Overvoltage category III
- Built-in DC OK relay contact
- Dimensions 32 x 125.2 x 102mm (W x H x D)
