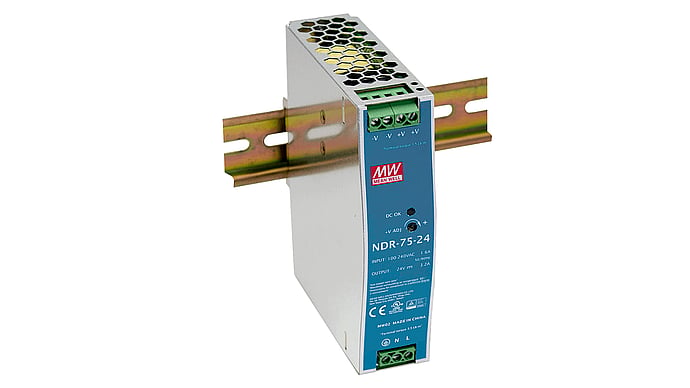

76W DIN rail power supply 24V/3.2A, single phase

Name: NDR-75-24 - MEAN WELL - 76W DIN rail power supply 24V/3.2A, single phase
Brand: MEAN WELL
SKU: NDR-75-24
Price: 20.60 CHF
Availability: InStock

CHF 20.60 excl. VAT, plus shipping costs

Item no: NDR-75-24

Stock level:28 Available immediately

Packaging ex works: 28 piece

5+ ~~CHF 20.60~~ CHF 19.60 (4%save)

10+ ~~CHF 19.60~~ CHF 18.70 (9%save)

20+ ~~CHF 18.70~~ CHF 18.30 (11%save)

Recommend:

Delivery time request Print PDF

Description

NDR-75-24 is a low-cost, slim 75 Watt DIN rail power supply unit for mounting on TS-35/7.5 or TS35/15 mounting rails.

Technical data

Suitable for mounting on TS-35/7.5/15 top-hat rails
Operating temperature range from -20°C to +70°C
LED display for DC OK
Dimensions 32 x 125.2 x 102mm (W x H x D)

Additional information

DIN rail power supplies

Output voltage (Vdc)	24
Power (W)	76
Output current (A)	3.2
Input voltage range (Vac)	85 to 264
Connection	Screw terminal
Certificates	EN62368-1, IEC62368-1, UL508
Overload behavior	Constant current limiting
Product series	NDR
Width (mm)	32
Height (mm)	125.2
Depth (mm)	102
Manufacturer	MEAN WELL

LEDs

Manufacturer's warranty	3 years
Efficiency typ.	88%

Data sheets

Data sheet NDR-75	PDF(693.49 KB)
Test Report NDR-75-24	PDF(265.37 KB)
User Manual NDR	PDF(831.32 KB)
Carbon Footprint declaration NDR-75	PDF(74.06 KB)

Downloads

3D data NDR-75	Zip file (377.71 KB)
