120W DIN rail power supply 24V/5A, peak power
CHF 72.50 excl. VAT, plus shipping costs
Description

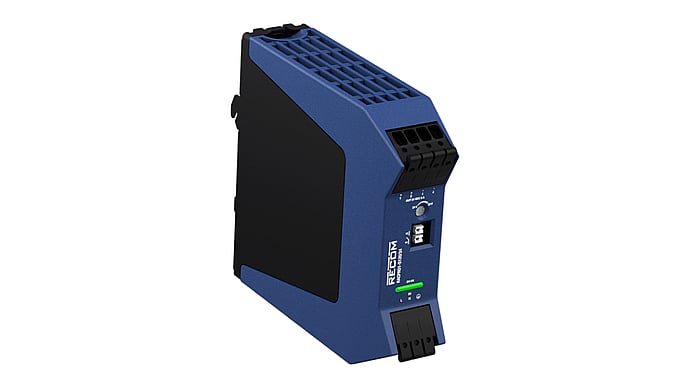

The RACPRO1-S120 is a slim, single-phase DIN rail power supply with 120 W power in an extremely compact design (only 28 mm wide). Available with 12 V, 24 V, or 48 V output voltage, it was developed for demanding industrial applications. It offers high reverse voltage resistance for regenerative loads, operates from -40°C to +60°C at full power with convection cooling, and delivers up to 150% boost power for short periods. The modern design with 25° connectors enables quick, tool-free installation.
Technical data
- Smallest 120W DIN rail power supply on the market
- DC input voltage range 88-370 Vdc
- Full performance from -40°C to +60°C
- Thermal Power Bonus: Up to 45°C 120% power continuously
- Peak power of 150% of the nominal load for 5 seconds
- No load power consumption 0.3W
- MADE IN EUROPE
Additional information
| DIN rail power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet RACPRO1-S120 | PDF(1.03 MB) |
|---|---|
| Installation instructions RACPRO1-S | PDF(1.33 MB) |
Downloads
| 3D STEP files RACPRO1-S120 | Zip file (2.22 MB) |
|---|
