240W DIN rail power supply 24V/10A, peak power
CHF 83.80 excl. VAT, plus shipping costs
Description

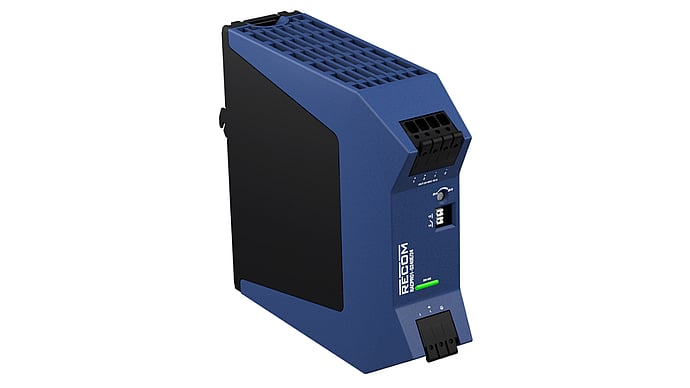

RACPRO1-S240E-24is a slim, single-phase DIN rail power supply with 240 watts of power and 24V output voltage. With its compact dimensions of 125 × 139 mm and a width of only 39 mm, it is ideal for space-critical applications in industrial automation.
The split input voltage range of 85–132 VAC and 170–277 VAC enables worldwide use on 100/120 V and 200/240 V networks.
The power supply is designed for harsh industrial environments and offers high backfeed resistance, e.g., for braking motors or inductive loads. The integrated ORing diode enables parallel and redundant operation without external components.
It delivers 240 watts in a temperature range from –40 °C to +60 °C with pure convective cooling, up to 45 °C with a power bonus of 288 watts, and 150% boost power for 5 seconds. The 25° push-in connections ensure quick, tool-free installation.
Technical data
- Slim design (39 mm) with 25° connectors
- Active power factor correction >0,95
- Active inrush current limitation
- DC input range 88–370 VDC
- Full power -40 °C/+60 °C, boost power 150 %/5 s
- Thermal performance bonus 120%/45°C
- Service life 273,000 hours/40 °C/75% load
- Integrated ORing diode
- Reduced No load power consumption 1 W
- Made in Europe
