DC/DC PCB assembly

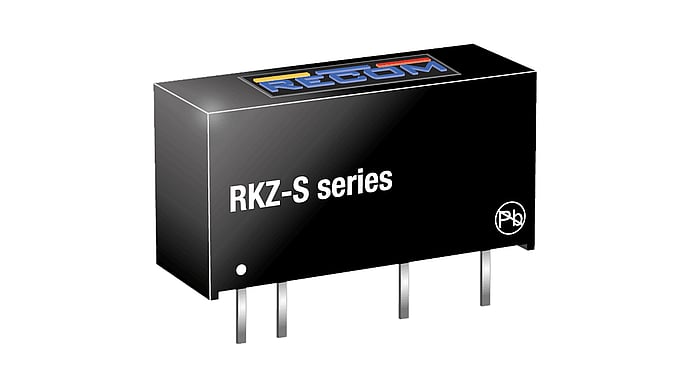

2W DC/DC converter, input 5V, output 5V/400mA, SIP7
CHF 9.25 excl. VAT, plus shipping costs
Item no:
RKZ-0505S/P
In stock: Available to order
Packaging ex works:
25 piece
10+ CHF 9.25 CHF 8.85 (4%save)
25+ CHF 8.85 CHF 8.55 (7%save)
50+ CHF 8.55 CHF 8.45 (8%save)
100+ CHF 8.45 CHF 8.20 (11%save)
Description
RKZ-0505S/P is a 2 Watt DC/DC converter for high-end industrial applications such as IGBT driver circuits. The RKZ converters are pin-compatible with the RK and RH converter series and offer an easy way to upgrade a highly isolated 1 watt supply to 2 watts.
Technical data
- Highly insulating 2W converter
- 3kVDC/1s basic insulation
- UL94V-0 housing material
- Permanently short-circuit-proof (suffix P)
- Efficiency of up to 84
- Suitable for IGBT applications
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RKZ | PDF(279.05 KB) |
|---|
Downloads
| 3D Step File RKZ | Zip file (36.87 KB) |
|---|
Accessories
-
RLS-126
SMD power inductorsCHF 0.8050 Available immediately -
RLS-226
SMD power inductorsCHF 0.8050 Available immediately -
RLS-126-R
SMD power inductorsCHF 0.70Available to order -
RLS-226-R
SMD power inductorsCHF 0.70Available to order
