DC/DC PCB assembly

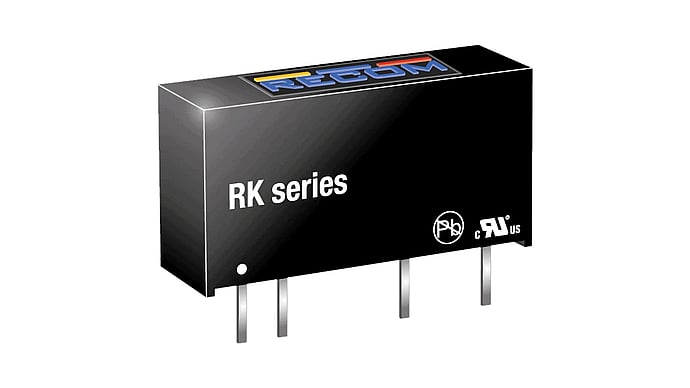

1W DC/DC converter, input 5V, output 5V/200mA, SIP7
CHF 7.60 excl. VAT, plus shipping costs
Item no:
RK-0505S/H
In stock: Available to order
Packaging ex works:
25 piece
10+ CHF 7.60 CHF 7.25 (4%save)
25+ CHF 7.25 CHF 7.05 (7%save)
50+ CHF 7.05 CHF 6.95 (8%save)
100+ CHF 6.95 CHF 6.75 (11%save)
Description
The DC/DC converters of the RK-H series complement RECOM's industrial converter series with very high insulation values of 4kVDC/1s. The extended operating temperature range of -40°C to +90°C is a standard feature. The converters are certified to IEC/EN/UL60950-1 and are suitable for IGBT driver applications.
Technical data
- 4kVDC/1s insulation
- Optional permanent short-circuit protection
- UL94V-0 housing material
- Efficiency of up to 84
- Suitable for IGBT applications
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RK | PDF(370 KB) |
|---|
Downloads
| 3D Step File | Zip file (36.81 KB) |
|---|
