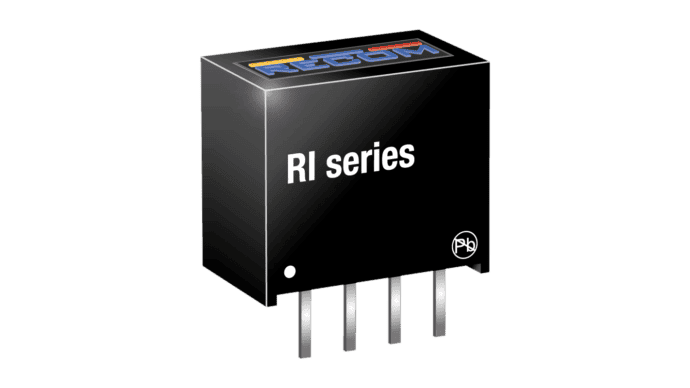

2W DC/DC converter, input 5V, output 5V/400mA, SIP4
CHF 7.30 excl. VAT, plus shipping costs
Description
RI-0505S is a 2 Watt DC/DC converter for applications with limited space on the PCB. With efficiencies of up to 85%, full output power is available over the operating temperature range of -40°C to +85°C, and the converters can be used with derating at ambient temperatures of up to 100°C. The wide range of input voltage and output voltage options and a standard I/O isolation of 1kVDC make these converters suitable for many industrial applications.
Technical data
- 1kVDC/1 second Basic insulation
- Optional permanent short-circuit protection
- UL94 V-0 Housing material
- No heat sink required
- Efficiency of up to 85
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RI | PDF(881.64 KB) |
|---|
Downloads
| 3D Step File RI | Zip file (36.47 KB) |
|---|
