LED strips

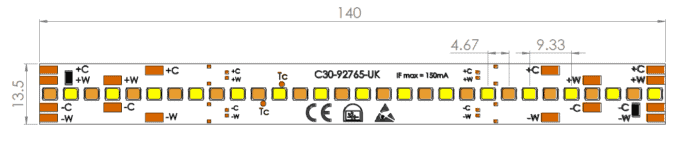

Flexible TW LED strip / CC version / 2700K & 6500K, CRI >90 / 12.6m
HIGH END REEL2REEL CC TUNABLE WHITE LED STRIPS MADE IN EU
Item no:
PF12.6-C30-92765-UK
Stock:4 Available immediately
Please register for price display.
Description
- Reel2reel technology, a 12.6m long Tunable white LED strip without soldered connections
- TW constant current strips with high efficiency up to 211lm/W
- >10,000lm/2m and still far from the limit
- Color temperature: 2'700+6'500K, McAdam 3 Color Bin and in CRI of Ra >90
- Very long service life: L90, B10 >74,000 hours, 5-year manufacturer's warranty
- Self-adhesive 3M tape on the back for easy mounting on different surfaces
- Optionally available with Molex connector (quick wiring without soldering)
- Ideal for applications where high luminous fluxes are required
- Maximum flexibility in practice. Save production time and reduce your stock levels!
Additional information
| LED strips | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| PF12.6-C30-92765-UK | PDF(1.38 MB) |
|---|
Downloads
| Calculation PF12.6-C30 | Zip file (105.78 KB) |
|---|
Accessories
-
SRP-2309-10-C500-NFC
10W DALI2 DT8, Tunable white, constant current LED driver, NFCCHF 28.2017 Available immediately -

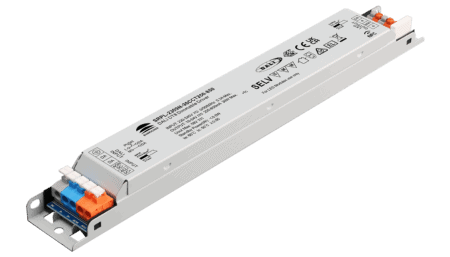

SRPL-2309N-30CCT250-850
30W DALI2 DT8, AC-PUSH, Tunable white, Linear constant current LED driver, NFCCHF 41.40104 Available immediately -
SRP-2309-45-C1400-NFC
45W DALI2 DT8, Tunable white, constant current LED driver, NFCCHF 42.6052 Available immediately -
SRPL-2309N-60CCT900-1700
60W DALI2 DT8, AC-PUSH, Tunable white, Linear constant current LED driver, NFCCHF 61.7094 Available immediately -
SRP-2309-75-PRO-CC
75W DALI DT8, 4in1, constant current LED driverCHF 100.207 Available immediately -
SRP-2309-75-TW-C15
75W DALI DT8, Tunable white, constant current LED driverCHF 45.0024 Available immediately -
CABLE1M-TW-AWG20
TW cable AWG20 (roll = 305m)CHF 240.00838 Available immediately -
FMS-35-700 LD
35W LED driver constant current 300/350/500/600/700mA, 15-52VdcCHF 25.001389 Available immediately -
FMS-35-700 DALI2 LD
35W LED driver constant current 150 to 700mA, 15-51Vdc, DALI2, AC PushCHF 35.20194 Available immediately -
FMS-50-1050 DALI2 LD
50W LED driver constant current 350-1050mA, 15-51Vdc, DALI2, AC PushCHF 56.3078 Available immediately -
FMS-75-1800 DALI2 LD
75W LED driver constant current 1050 to 1800mA, 15-51VdcCHF 57.30108 Available immediately -
XLC-60-H-MAS
60W LED driver 900mA to 1700mA/9V...54V, Matter, IndependentCHF 61.407 Available immediately
