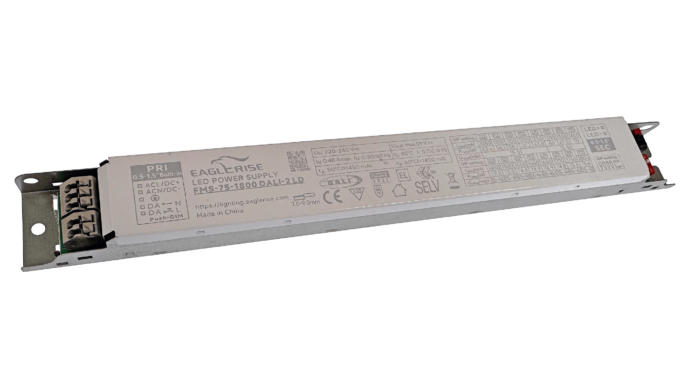

75W LED driver constant current 1050 to 1800mA, 15-51Vdc
CHF 57.30 excl. VAT, plus shipping costs
Description
The LED driver FMS-75-1800 DALI2 LD with constant current output is designed for the operation of LED lighting applications from 1050 to 1800mA in the voltage range from 15 to 51Vdc. The output current can be set using the DIP switch on the device. The dimming range is 1 to 100% and can be controlled via AC Push or DALI.
Technical data
- Forward voltage range 15 to 51Vdc
- Adjustable output currents 1050mA / 1100mA / 1150mA / 1200mA / 1250mA / 1300mA / 1350mA / 1400mA / 1450mA / 1500mA / 1550mA / 1600mA / 1650mA / 1700mA / 1750mA / 1800mA (factory setting)
- Dimming range 1 to 100%. 1% to 13% PWM with 3kHz, 13% to 100% amplitude dimming
- Supports DALI Maintenance (Part 251,252,253)
- EOFI Level 15%
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 year guarantee
- Manufacturer: Eaglerise
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet FMS-75-1800 DALI2 LD | PDF(1.4 MB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FMS-75-1800 DALI2 LD | Zip file (862.43 KB) |
|---|
