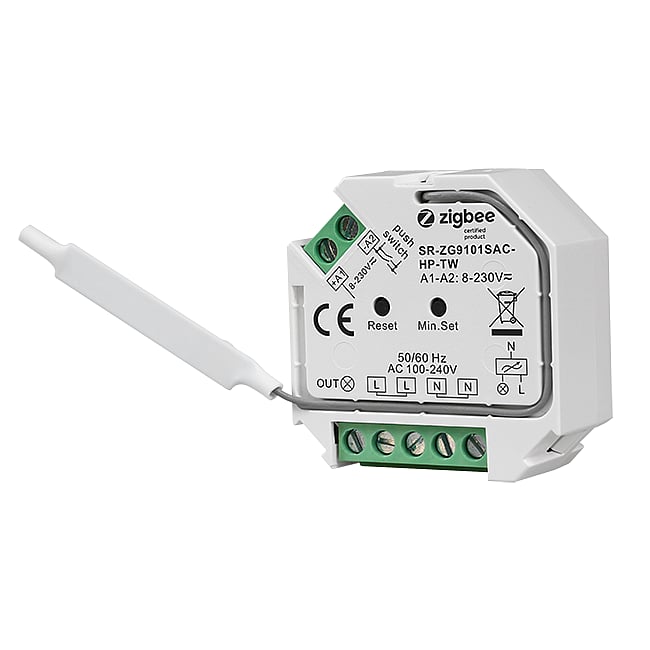

Wireless dimming actuator ZigBee 3.0 400W RC Tunable White

Description

• ZigBee AC trailing edge phase cut-off dimmer with Tunable White, based on the latest ZigBee 3.0 protocol
• Wide input and output voltage range from 100-240 VAC
• Supports resistive and capacitive loads
• 1 channel output, up to 400 W
• Input and output with screw terminals, safe and reliable
• Both a version with leading edge phase control and a version with trailing edge phase control are available, the factory default setting is trailing edge phase control
• Enables control of color temperature, light intensity and on/off switching of phase-cut, dimmable Tunable White LED drivers or lamps
• ZigBee end device that supports commissioning via Touchlink
• Can be paired directly with a compatible ZigBee remote control via Touchlink without a coordinator
• Supports self-forming ZigBee networks without a coordinator and the addition of further devices to the network
• Supports search and bind mode for binding a ZigBee remote control
• Supports ZigBee Green Power and can bind a maximum of 20 ZigBee Green Power remote controls
• Compatible with universal ZigBee gateway products
• Can be controlled via universal Pushbutton switch
• Mini size, easy to install in a standard wall box
• 5 year guarantee
