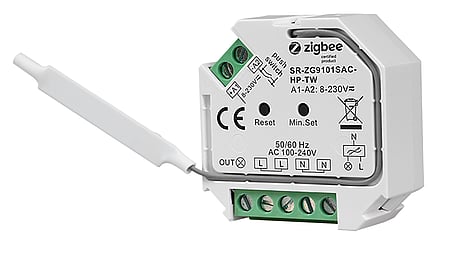

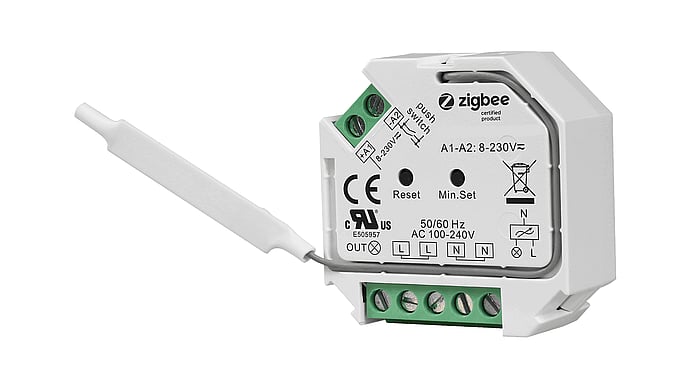

Radio dimming actuator ZigBee 3.0 400W RC

Technical data

• ZigBee AC trailing edge phase control dimmer based on the latest ZigBee 3.0 protocol
• 100-240VAC wide input and output voltage
• Supports resistive loads and capacitive loads
• 1 channel output, up to 400W
• Both the version with leading edge and the version with trailing edge are available, the factory setting is the trailing edge.
• ZigBee end device that supports Touchlink commissioning
• Can be paired directly with a compatible ZigBee remote control via Touchlink without a coordinator
• Supports the self-creation of a ZigBee network without a hub and the addition of other devices to the network
• Supports find-and-bind mode for binding a ZigBee remote control
• Supports Zigbee Green Power and can handle a maximum of 20 Zigbee Green Power remote controls
• Compatible with universal ZigBee gateway products
• Can be controlled with universal 8-230V input and single-wire push-button switch
• IP20 Degree of protection
• Plastic housing
• Operating temperature range from -20°C to +40°C
• Dimension 45.5 x 45 x 20.3mm
• 5 year guarantee
