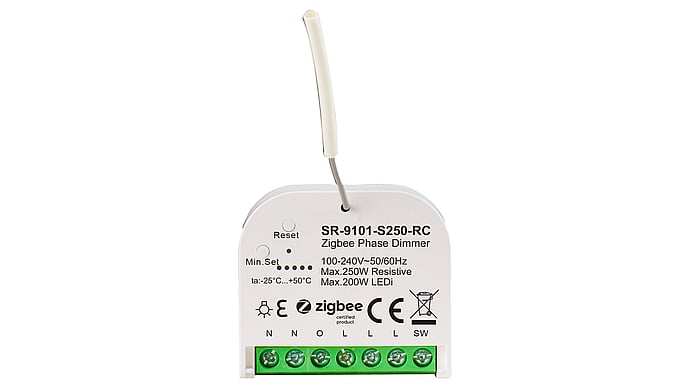

Zigbee 3.0 Mini dimming actuator RC up to 250W

Description

• ZigBee AC trailing edge phase control dimmer based on the latest ZigBee 3.0 protocol
• 100-240VAC Wide input and output voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 channel output, up to 250W
• Input and output with screw terminals, safe and reliable
• Both the version with leading edge and the version with trailing edge are available
• Enables control of ON/OFF and light intensity of the connected light source
• ZigBee end device that supports Touchlink commissioning
• Can be connected directly to a compatible ZigBee remote control
• can be coupled via Touchlink without a coordinator
• Compatible with universal ZigBee gateway products
• Supports power measurement
• Mini size, easy to install in a standard 86*86mm wall box
• Can be operated in two-wire circuit without neutral conductor or in three-wire circuit with neutral conductor
• Advanced microprocessor control
• Implemented algorithm for intelligent detection of light sources
• Active power and energy measurement function
• Soft start function
• Innovative function for setting the minimum dimming value and the starting brightness
• Works with different types of switches - pushbuttons, toggle switches, three-way switches, etc.
• Active element: electronic semiconductor switch
• Installation in wall switch boxes whose dimensions permit installation and which comply with the applicable regulations.
