SPI controller for pixel-to-pixel LED control
CHF 82.50 excl. VAT, plus shipping costs
Description

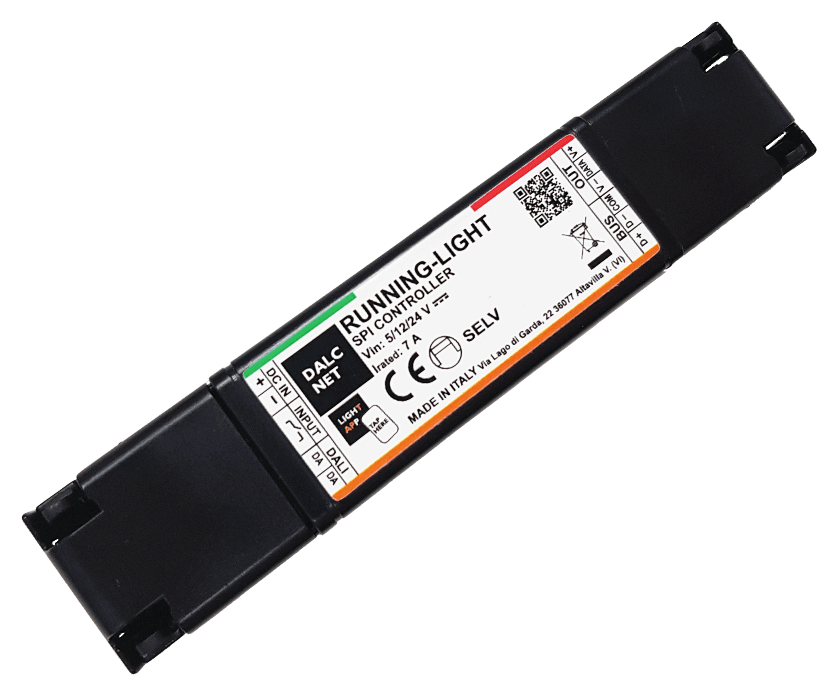

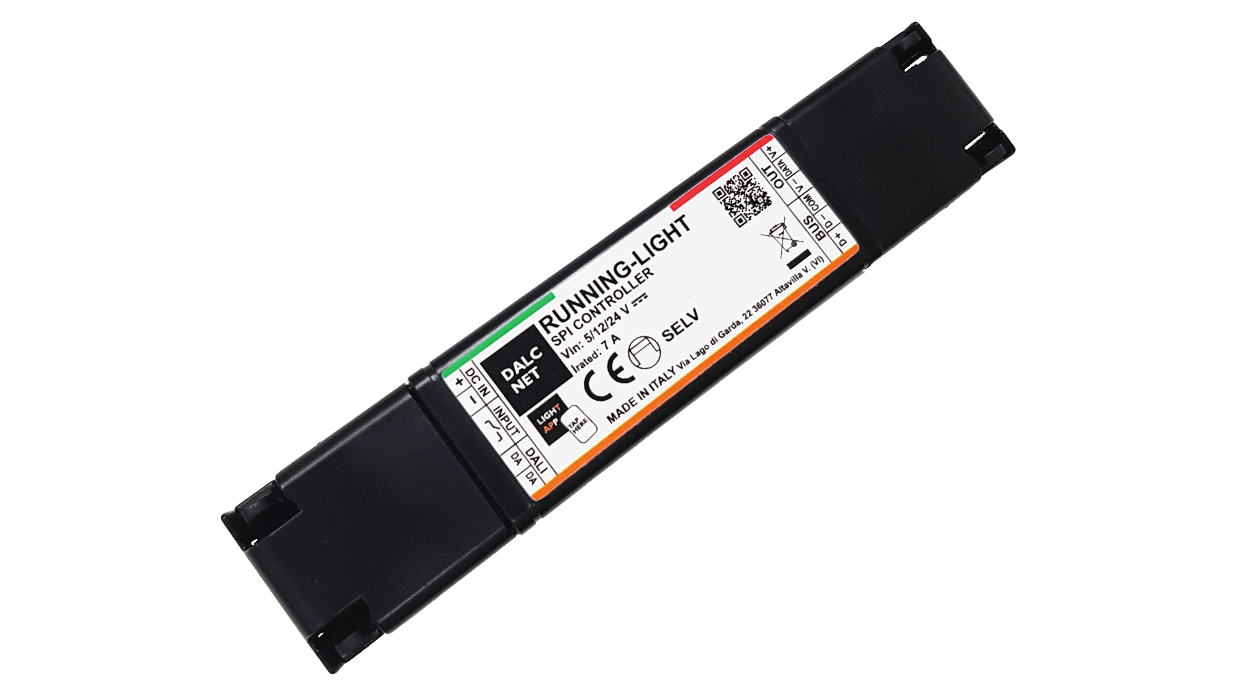

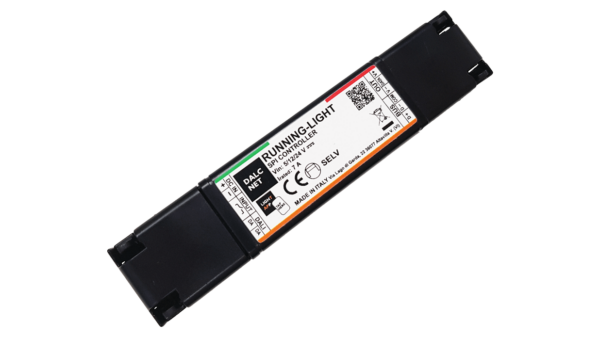

RUNNING-LIGHT is an SPI controller for pixel-to-pixel LED control of digital (programmable/addressable) LED strips that can be connected to a SELV constant voltage supply (5 ÷ 24) Vdc. The controller is suitable for controlling loads such as digital LED strips and RGB or WWW LED modules at constant voltage. It can be controlled locally via a normally open push-button or remotely via the DALI (Digital Addressable Lighting Interface) digital protocol.
RUNNING-LIGHT can supply a maximum output current of 7 A and has the following protective functions: Overvoltage and undervoltage protection, reverse polarity protection and input fuse.
With the Dalcnet LightApp© mobile application and smartphones equipped with Near Field Communication (NFC) technology, it is possible to configure several parameters when the device is off, including up to 10 different light effects, color, speed, direction, pixel length and transition parameters. Dalcnet LightApp© can be downloaded for free from the Apple APP Store and Google Play Store.
APPLE ANDROID
Technical data
- SPI controller for digital LED strips
- Power supply (DC IN): 5-12-24 Vdc
- Output (OUT): Value equal to the input voltage
- RGB and WWW light control
- Local control via normally open button (N.O.)
- Remote control via BUS (DALI)
- Master/slave functionality (SYNC)
- Device configuration via Dalcnet LightApp© mobile application, parameters can be set
- Integrated circuit (IC) LED type
- Control and color type
- Up to 10 dynamic effects
- DALI parameters
- Power-ON status
- Transition parameters (crossfade)
- DALI groups and scenes
- Opto-isolated BUS input
- Extended temperature range
- 100% function test
Additional information
| LED dimmer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
Data sheets
| RUNNING-LIGHT | PDF(1.51 MB) |
|---|
Accessories
-
SF05-L120-RGB-SPI
Flexible SPI RGB LED strip / 14.4W / 5m32 Available immediately
Similar products
-
CBU-DALI-GATEWAY
CASAMBI to DALI signal converter, CASAMBI input, DALI outputCHF 235.002 Available immediately -
CBU-DALI-IP
CASAMBI to DALI signal converter for outdoor applications, CASAMBI input, DALI outputCHF 318.501 Available immediately -
DLC-02
2-channel DALI 2.0 controller for 2×64 DALI drivers, single color, Tunable White, RGBWCHF 351.90Available to order -
TIMER-CASAMBI
Backup timer Casambi, input 12-48Vdc, command APP CASAMBI - N.O. Push buttonCHF 197.509 Available immediately -
CBU-8PUSH
8 channel CASAMBI LV-PUSH converterCHF 131.603 Available immediately -

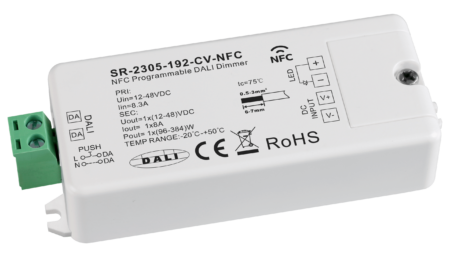

SR-2305-192-CV-NFC
