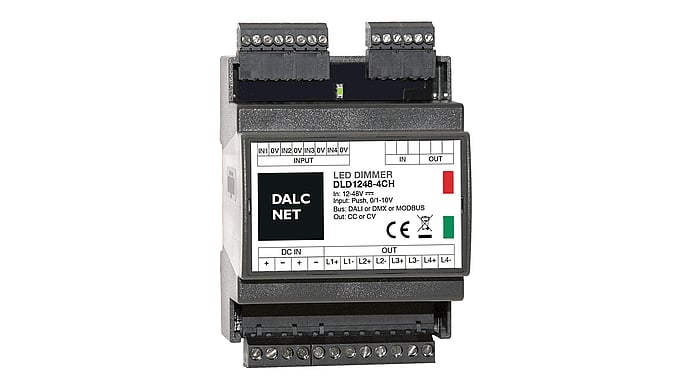

LED dimmer
4 channel DALI LED dimmer, constant current
CHF 106.60 excl. VAT, plus shipping costs
Item no:
DLD1248-4CC-DALI
Stock level:4 Available immediately
Description
- Output: 4 channels
- BUS+SEQUENCER+FADER+DIMMER+DRIVER
- Input: DC 12/24/48 Vdc
- Output 4x700mA - 1×2.8A
- BUS command: DALI
- Local command: 4x N.O. buttons (with or without memory), 0-10V, 1-10V
and potentiometer 10KOhm - Control elements: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
- Control outputs and current outputs for R-L-C loads
- Typical efficiency > 95%
- Setting the brightness up to complete switch-off (Dim to Dark)
- Minimum brightness: 0.1% (1% in Push)
- D-PWM modulation
- Setting the D-PWM frequency: 300 / 600 / 1200 Hz
- Adjustable output curve: Linear / Quadratic / Exponential
- Soft start and soft stop
- Smooth dimming control
- Master / slave function (DMX variant)
- Extended temperature range
- 100% function test
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
Data sheets
| DLD1248-4CC-DALI | PDF(1.11 MB) |
|---|
Accessories
-
DIN rail perforated TS35/7.5
DIN rail perforated TS35/7.5CHF 1.90 - CHF 2.50Select version This product has several variants. The options can be selected on the product page -
PF12.6-C30-92765-UK
Flexible TW LED strip / CC version / 2700K & 6500K, CRI >90 / 12.6m9 Available immediately
Similar products
-
DLD1248-4CC-DMX
4 channel DMX LED dimmer, constant currentCHF 106.60Available to order -

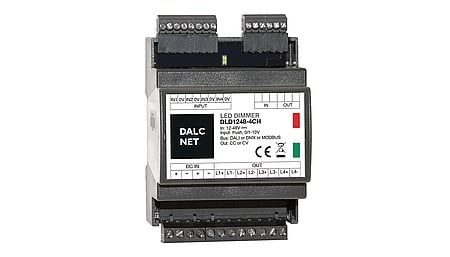

DLD1248-4CC-MODBUS
