LED dimmer

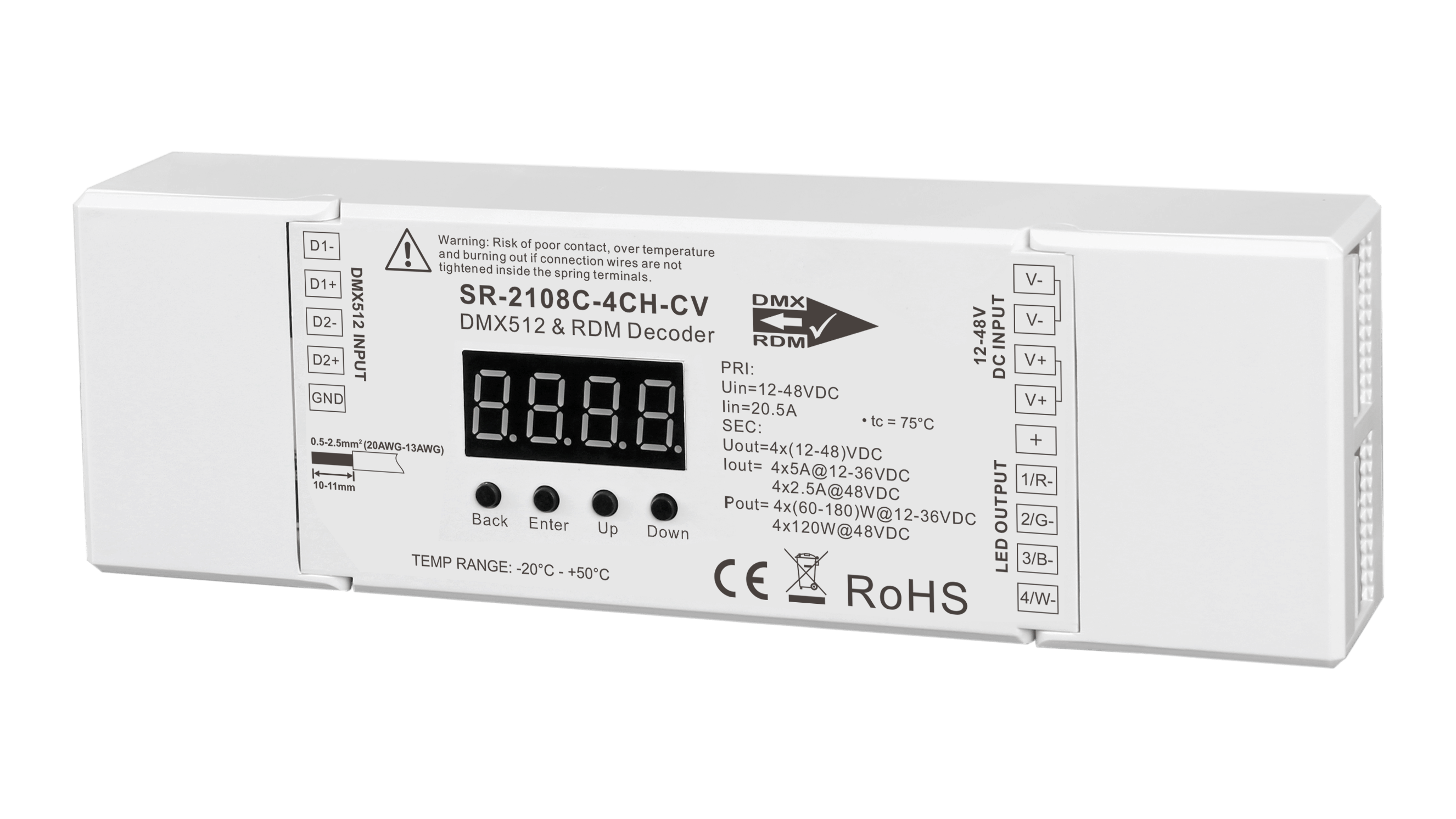

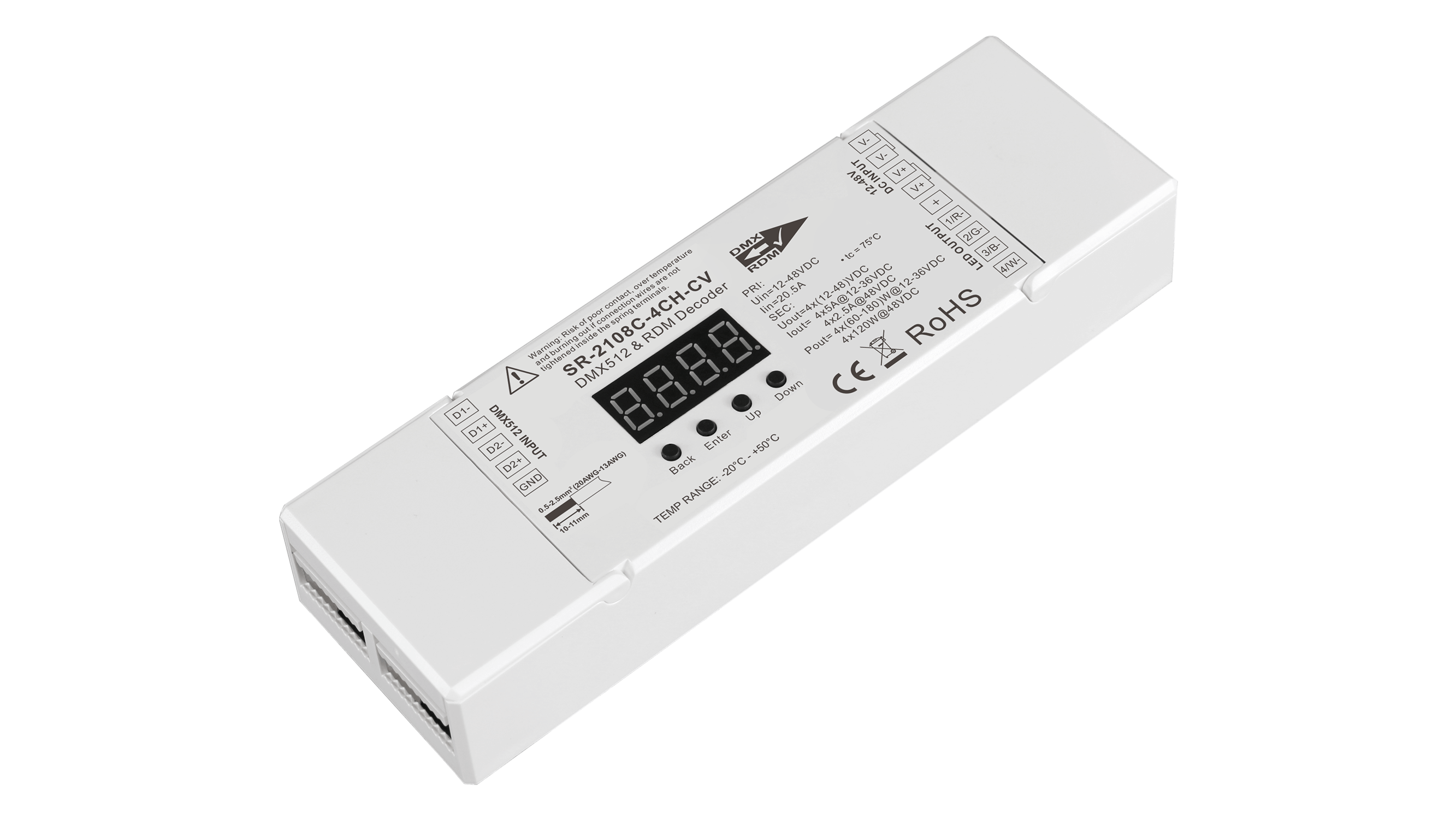

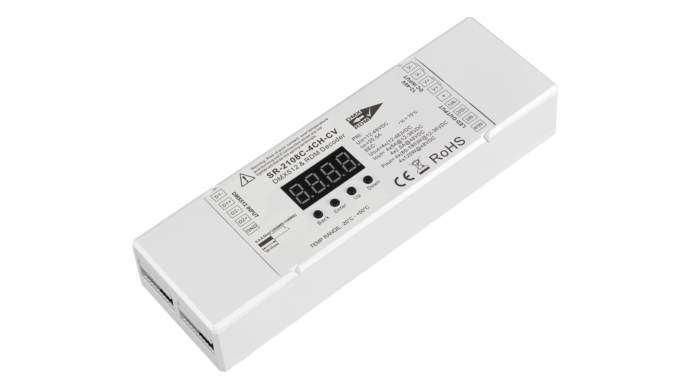

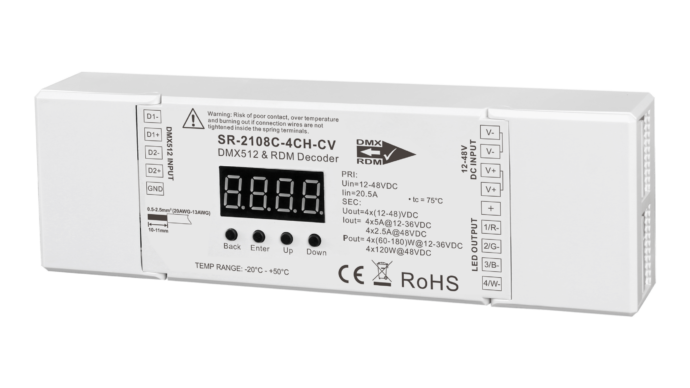

DMX512 RDM LED dimmer, 4 channel, constant voltage 12-48VDC, max. 720W
CHF 72.40 excl. VAT, plus shipping costs
Item no:
SR-2108C-4CH-CV
Stock level:28 Available immediately
Description
- Standard DMX512-compliant control interface
- Supports RDM function
- DMX address manually adjustable
- Gamma value of the output dimming curve adjustable from 0.1 to 9.9
- For use with a power repeater for unlimited expansion of the output power
- Constant voltage output
- DMX channel number adjustable from 1CH to 4CH
- PWM output resolution 8 bit, 16 bit selectable
- PWM frequency selectable from 500 Hz to 35 kHz
- IP20 Degree of protection
- Plastic housing
- Operating temperature range from -20°C to +50°C
- Dimension 170 x 53.4 x 28mm
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
Data sheets
| SR-2108C-4CH-CV | PDF(1.32 MB) |
|---|
