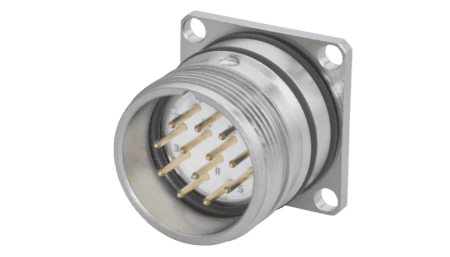

Housing M23 Signal INOX appliance coupler
CHF 39.55 excl. VAT, plus shipping costs
Description
M23 Signal INOX appliance coupler (housing only, excl. insert and contacts)
Special applications require special solutions. This also applies to circular connectors made of stainless steel. They are used wherever the ambient conditions are extremely harsh or the hygienic requirements are particularly high.
.
// Signal connector M 16 INOX
// Signal connectors M 23 INOX
// M 23 INOX power connectors
.
Further, not published HUMMEL products and versions on request.
Technical data
- Housing material: Stainless steel 1.4404 (AISI 316)
- Version: with vibration protection
- Locking type: Screw fastening
- Shielding: unshielded
- Seal type: O-ring
- Material seals/o-rings: FKM (FPM)
- Flange: 25 x 25 mm
- Hole spacing: 19.8 mm
- Hole diameter: 4x Ø 3.2 mm
- Temperature range: -40°C...+125°C
- Protection class: IP67 / 69K
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
.
Fehler und technische Änderungen vorbehalten
Additional information
| Circular connector | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| Catalog excerpt M23 Signal INOX | PDF(102.89 KB) |
|---|
Similar products
-
7651000000

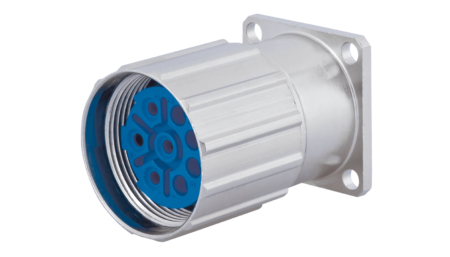

Housing M23 appliance coupler Power Single-hole mounting Rear panelCHF 22.4021 Available immediately -

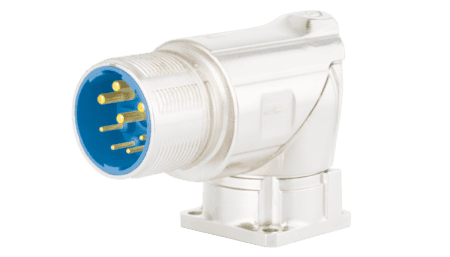

Housing M23 device connector angled Power TWILOCK/TWILOCK-S
