Inserts & contacts M23
M23 power Contact insert (m) 10-pole Crimp insert without contacts
Sales price (VP) per 1 piece
CHF 6.60 excl. VAT, plus shipping costs
Item no:
7084910101
In stock: Available to order
Packaging ex works:
25 pcs
Estimated delivery time:
1-2 weeks
Description

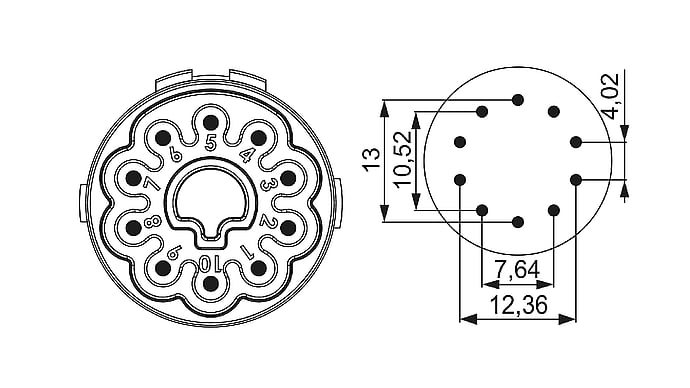

Hummel pin insert - M23 power contact insert (m) 10-pin, crimp insert without contacts
.
Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 10
- Pole image: 10
- Use: Pen
- Color contact insert: blue
- Insulator material: PA 6, PBT
- Number of contacts Signal: 10
- Contact Ø signal: 1 mm
- Signal connection cross-section: 0.14 - 1.5 mm²
- Connection cross-section power: 0.75 - 4 mm²
- Rated current signal: 10 A
- Rated voltage for pollution degree 3 Signal: 160 V~
- Test voltage signal: 2500 V~
- Test voltage power: 4000 V~
- Insulation resistance signal: > 10^13 Ω
- max. contact resistance signal: 3 mOhm
- Max. contact resistance power: 3 mOhm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
- Suitable signal contacts: 7010941001, 7010941021
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Catalog excerpt M23 Power / Hybrid inserts | PDF(319.35 KB) |
|---|
Similar products
-
7010941021
M23 crimping pin Ø 1.0mm, turned 7.010.941.021CHF 111.05Available to order -
7010941001
M23 crimping pin Ø 1.0mm, turned 7.010.941.001CHF 49.353 Available immediately
