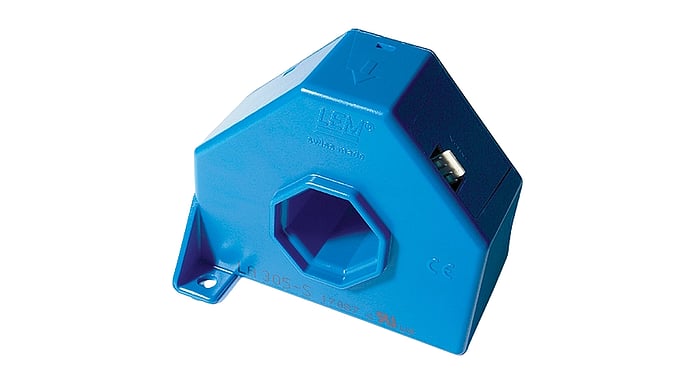

Current transformer
Current transformer 500A / measuring range 800A / high accuracy / fast response time / DC, AC and pulse currents
High performance at an affordable price.
CHF 180.50 excl. VAT, plus shipping costs
Item no:
LA 305-S/SP1
In stock: Available to order
Description
- Series: LA305
- Special version: rated current 500A, measuring range 800A, transmission ratio Np to INs = 1 : 2000
- Closed loop Hall effect current sensor (AC, DC, pulse current measurement)
- Galvanic isolation of primary and secondary circuit
- Bandwidth: DC up to 100 kHz
- Housing: UL 94-V0 plastic
- Mounting: Panel
- Trough Hole
- 5 year guarantee
Technical data
- Rated current: 500 A
- Measuring range: up to 800A
- Current output, direct mapping: 250 mA
- Supply: ±12 ... 15 V bipolar
- Accuracy: ±0.8 %
- Operating temperature: -10 °C to +85 °C
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| LA 305-S/SP1 | PDF(103.5 KB) |
|---|
Downloads
| 3D STEP File LA 305-S | Zip file (806.2 KB) |
|---|
