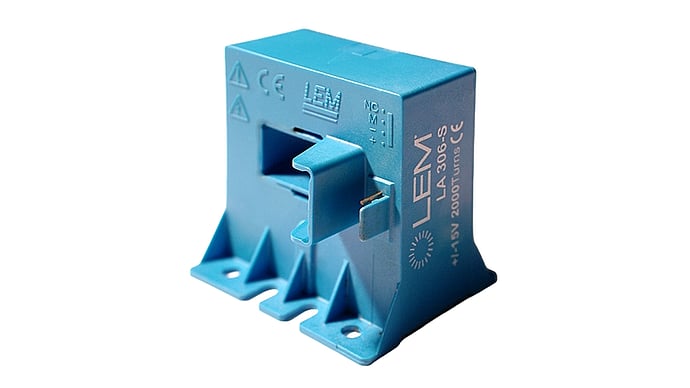

Current transformer
Current transformer 300A / measuring range 700A / high accuracy / fast response time / DC, AC and pulse currents
High performance at an affordable price.
CHF 55.55 excl. VAT, plus shipping costs
Item no:
LA 306-S
In stock: Available to order
Description
- Series: LA306
- Closed loop Hall effect current sensor (AC, DC, pulse current measurement)
- Galvanic isolation of primary and secondary circuit
- Bandwidth: DC up to 50 kHz
- Housing: UL 94-V0 plastic
- Mounting: Panel
- Trough Hole
- 5 year guarantee
Technical data
- Rated current: 300 A
- Measuring range: up to 700A
- Current output, direct mapping: 150 mA
- Supply: ±15 V bipolar
- Accuracy: ±0.7 %
- Operating temperature: -40 °C to +85 °C
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| LA 306-S | PDF(385.26 KB) |
|---|
Downloads
| 3D STEP File LA 306-S | Zip file (1.46 MB) |
|---|
