Current transformer
Current transformer 25A / measuring range 36A / high accuracy / fast response time / DC, AC and pulse currents

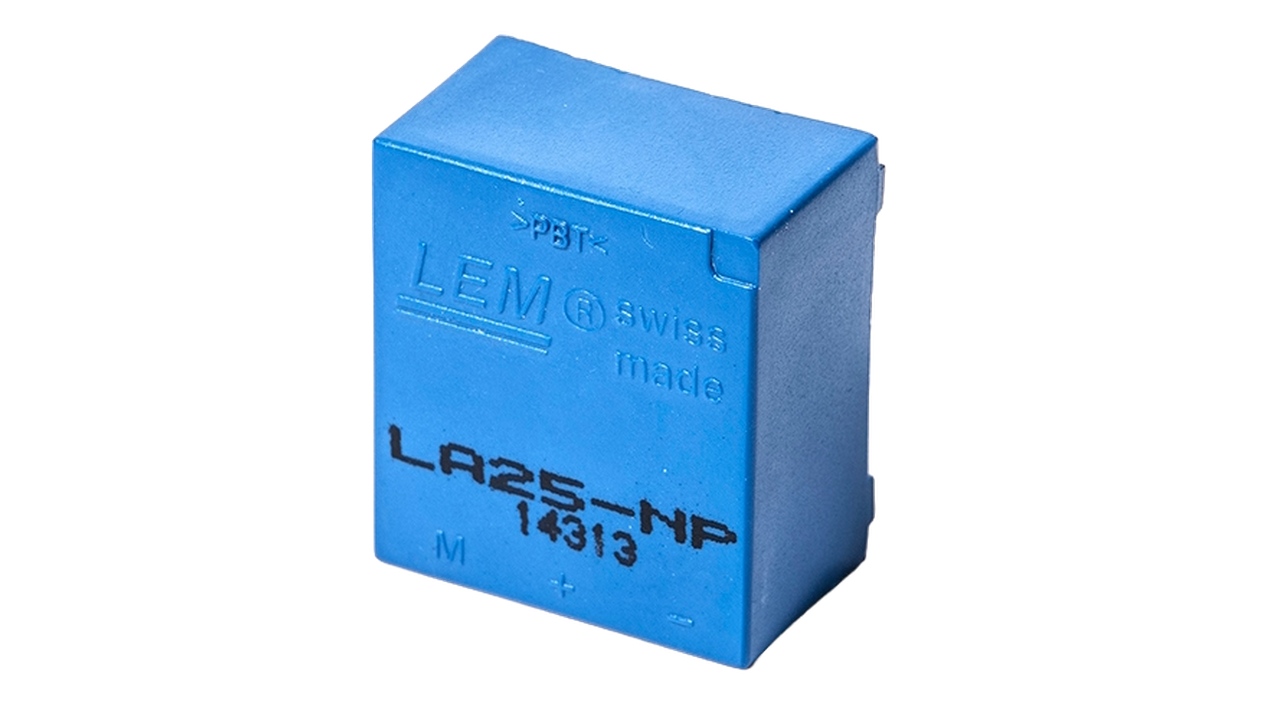

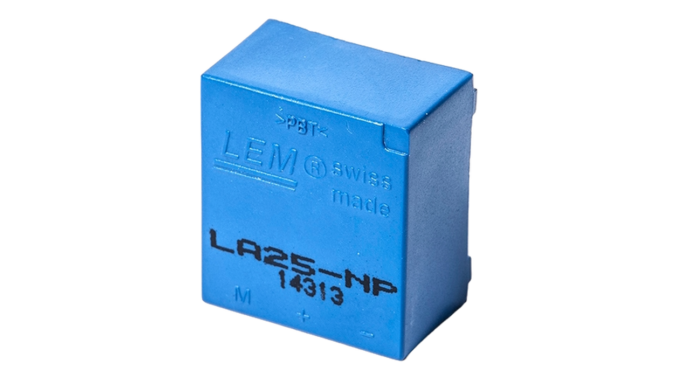

The LEM LA 25-NP is a reliable current sensor for the precise measurement of direct and alternating currents up to ±25 A or 36 A. Equipped with Hall effect technology, it enables isolated, contactless current measurement - ideal for applications in power electronics, drive technology, renewable energy and industrial control systems. Thanks to its compact design, the sensor is ideal for PCB mounting.
CHF 29.10 excl. VAT, plus shipping costs
Item no:
LA 25-NP
Stock level:175 Available immediately
Description
- Series: LA25NP
- Closed loop Hall effect current sensor (AC, DC, pulse current measurement)
- Galvanic isolation of primary and secondary circuit
- Bandwidth: DC up to 150 kHz
- Housing: UL 94-V0 plastic
- Assembly: PCB
- 5 year guarantee
- Advantages: Excellent accuracy, very good linearity, low temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high interference immunity, overload capability
- Typical applications: Drives, frequency converters, battery-powered applications UPS, SMPS, welding applications
Technical data
- Rated current: 25 A
- Measuring range: up to 36 A
- Current output, direct mapping: 25 mA
- Supply: ±15 V bipolar
- Accuracy: ±0.5 %
- Operating temperature: -40 °C to +85 °C
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| LA 25-NP | PDF(500.17 KB) |
|---|
Downloads
| 3D STEP File LA 25-NP | Zip file (742.13 KB) |
|---|
