Current transformer

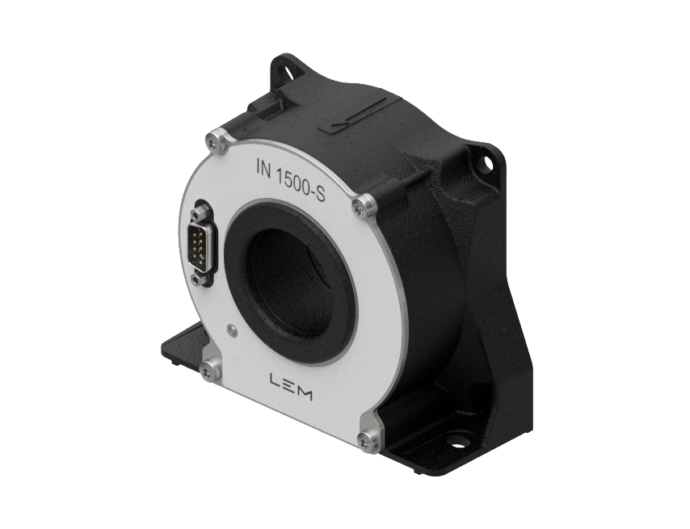

Current transformer 1500A / High-precision measurement of DC, AC and pulse currents

Item no: IN 1500-S
In stock: Available to order
Please register for price display.
Delivery time request  Print PDF

Description

  • Ultra high accuracy
  • Nominal AC, DC & pulse current measurement from 1500 A
  • Current output Direct mapping 1000 mA
  • Excellent linearity, 6 ppm over the entire temperature range
  • Low offset drift
  • Low noise, 34 ppm peak-peak
  • Compact housing

Technical data

  • Electrostatic shielding between primary and secondary side
  • Bipolar power supply from +/-15V
  • Operating temperature range -40 to +50°C
  • D-SUB 9-pin secondary connector
  • Secondary current output
  • Horizontal or vertical panel mounting
  • Additional output indicates converter status
  • External LED visually indicates normal operation
  • Large primary opening for conductors up to 38.2mm diameter

Additional information

Current transformer
Primary current Ipn

1500A

Primary signal

AC + DC

Measuring range Ipm

+/-2300A

Secondary output signal

1000mA

Signal processing

Direct imaging

Supply

+/-15Vdc

Accuracy

0.0018%

Temperature range

-40…+50°C

Frequency bandwidth

DC...523kHz

Response time (typ.)

<1µs

Housing assembly

Panel

Application

High Precision
LEDs
Manufacturer

LEM

Data sheets

IN 1500-S PDF(1.7 MB)

Downloads

3D STEP File IN 1500-S Zip file (2.11 MB)
