Current transformer

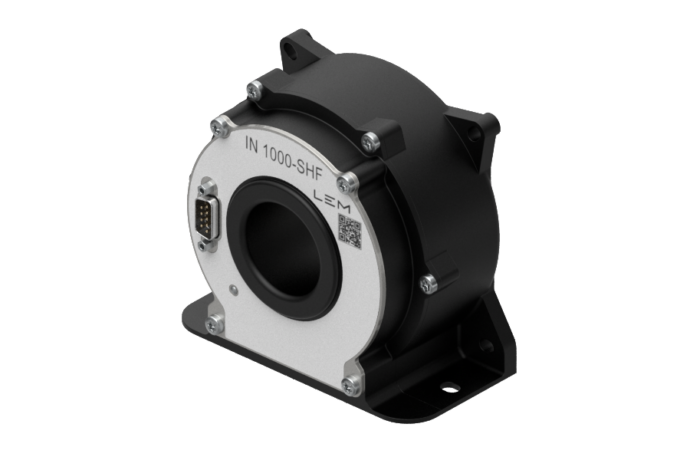

Current transformer 1000A (high bandwidth) / High-precision measurement of DC, AC and pulse currents

Item no: IN 1000-SHF
In stock: Available to order
Please register for price display.
Delivery time request  Print PDF

Description

  • High bandwidth 2.5 MHz
  • Ultra high accuracy
  • Nominal AC, DC & pulse current measurement from 1000 A
  • Current output Direct mapping 1000 mA
  • Excellent linearity, 3 ppm over the entire temperature range
  • Very low offset drift, 5 ppm
  • Low noise, 0.2 ppm peak-peak
  • Compact housing

Technical data

  • Electrostatic shielding between primary and secondary side
  • Bipolar power supply from +/-15V
  • Operating temperature range -40 to +85°C
  • D-SUB 9-pin secondary connector
  • Secondary current output
  • Horizontal or vertical panel mounting
  • Additional output indicates converter status
  • External LED visually indicates normal operation
  • Large primary opening for conductors up to 38 mm diameter

Additional information

Current transformer
Primary current Ipn

1000A

Primary signal

AC + DC

Measuring range Ipm

+/-1500A

Secondary output signal

1000mA

Signal processing

Direct imaging

Supply

+/-15Vdc

Accuracy

0.0018%

Temperature range

-40…+85°C

Frequency bandwidth

DC...2500kHz

Response time (typ.)

<0.3µs

Housing assembly

Panel

Application

High Precision
LEDs
Manufacturer

LEM
More
Manufacturer

LEM

Data sheets

IN 1000-SHF PDF(2.3 MB)

Downloads

3D STEP File IN 1000-SHF Zip file (517.18 KB)
