Current transformer

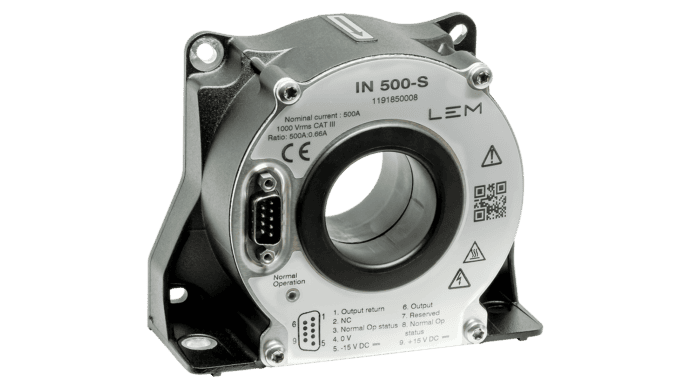

Current transformer 500A / High-precision measurement of DC, AC and pulse currents
Item no:
IN 500-S
In stock: Available to order
Please register for price display.
Description
- Ultra high accuracy
- Patented Fluxgate technology
- Nominal AC & DC current measurement from 500A / Peak 800A
- Excellent linearity, better than 3ppm over the operating temperature range
- Very low offset, over the operating temperature range up to 13ppm
- Low noise, less than 34ppm peak-peak
- Compact housing
Technical data
- Electrostatic shielding between primary and secondary side
- Bipolar power supply from +/-15V
- Operating temperature range -40 to +85°C
- D-SUB 9-pin secondary connector
- Secondary current output
- Horizontal or vertical panel mounting
- Additional output indicates converter status
- External LED visually indicates normal operation
- Large primary opening for conductors up to 38.2mm diameter
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| IN 500-S | PDF(727.4 KB) |
|---|
