Current transformer

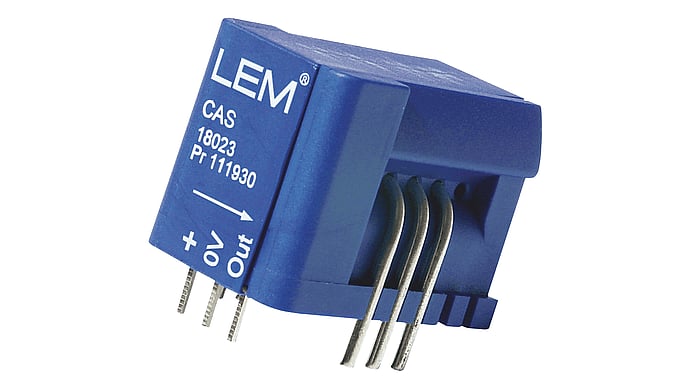

Fluxgate current transformer 6A / DC, AC, pulse / low drift / multi-range
Compact fluxgate current transformer, unipolar supply (+5V) 3 primary pins.
CHF 15.05 excl. VAT, plus shipping costs
Item no:
CAS 6-NP
In stock: Available to order
Description
- Low offset and gain drift
- Measuring range of up to 3 x IPN
- Attractive price PCB assembly
- 5 year guarantee
- Compact design (30% lower overall height than LTS)
- The required PCB area is 2.93cm²
- The weight of the converter is 9g
- High accuracy at +85°C: 2.5 to 3% of IPN
- Manufacturer LEM
Technical data
- Measurement of DC, AC and pulse currents with galvanic isolation
- Unipolar supply voltage +5Vdc
- Test voltage: up to 4.3kVrms / 50Hz / 1min
- Fluxgate technology
- Voltage output
- DC bandwidth up to 300kHz (+/-3dB), 200kHz (+/-1dB)
- Fast response time 0.3µs
Additional information
| Current transformer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| CAS 6-NP | PDF(798.77 KB) |
|---|
Downloads
| 3D Step File CAS 6-NP | Zip file (1.01 MB) |
|---|
