Maximum flexibility for modern LED lighting controls
With the new SR-9105-480-5C-CV Casambi 5-Channel Controller, you get a powerful and versatile solution for professional LED projects. The controller supports a wide variety of LED configurations and integrates seamlessly into the proven Casambi Bluetooth Mesh network —without the need for a gateway or additional control center.
One controller – 7 operating profiles
The SR-9105-480-5C-CV can be easily configured directly through the Casambi app and supports the following operating modes:
- RGBTW
- RGB+TW
- RGBW
- RGB+W
- RGB
- 2x Tunable White
- 4-Channel Dimmer
This makes the controller ideal for:
✅ RGB+CCT LED strips
✅ RGBW applications
✅ Tunable White
✅ Multi-channel dimming solutions
✅ Architectural & ambient lighting
Powerful & flexible
Technical Highlights
- Input voltage: 12–48 V DC
- Up to 5 channels
- Max. 20 A total current
- Max. 960 W total power
- Up to:
- 8 A per channel at 12–24 V
- 6 A per channel at 36 V
- 4A per channel at 48V
- Bluetooth Mesh technology
- OTA Firmware Updates
- Push-button input for existing push-button switches
- Compact size: 170 × 59 × 29 mm
- Protection class IP20
Casambi Mesh – Smart Lighting Control Without Limits
The SR-9105-480-5C-CV communicates directly with other Casambi devices on the network. Each device automatically extends the system's range—perfect for:
- Living spaces
- Retail
- Dining
- Offices
- Hotels
- Architectural Projects
Control your lighting conveniently via:
📱 Smartphone
📲 Tablet
🎛 Casambi wall switch
🔘 External buttons
Benefits at a Glance
✔ 7-in-1 multifunction controller
✔ No additional gateway hardware required
✔ Easy setup via app
✔ Ideal for RGB+CCT installations
✔ Scenes, groups, and animations
✔ OTA updates and future-proof platform
✔ Professional Casambi integration
-

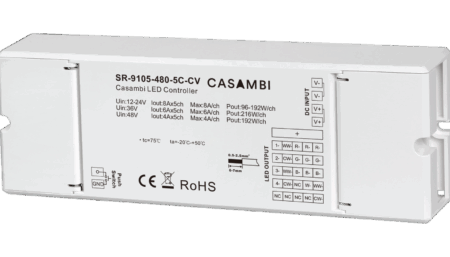

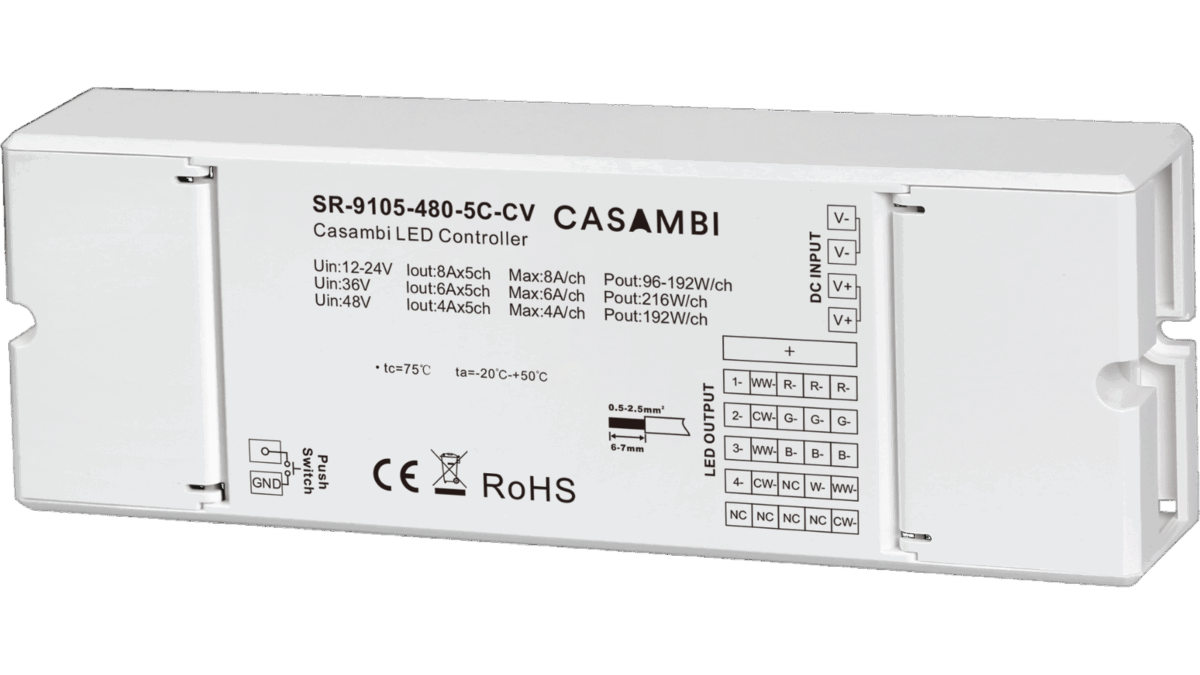

SR-9105-480-5C-CV
5-Channel CASAMBI LED Dimmer, RGBWW, Constant Voltage 12–48 VDC, Max. 960 WCHF 131.60Available to order
