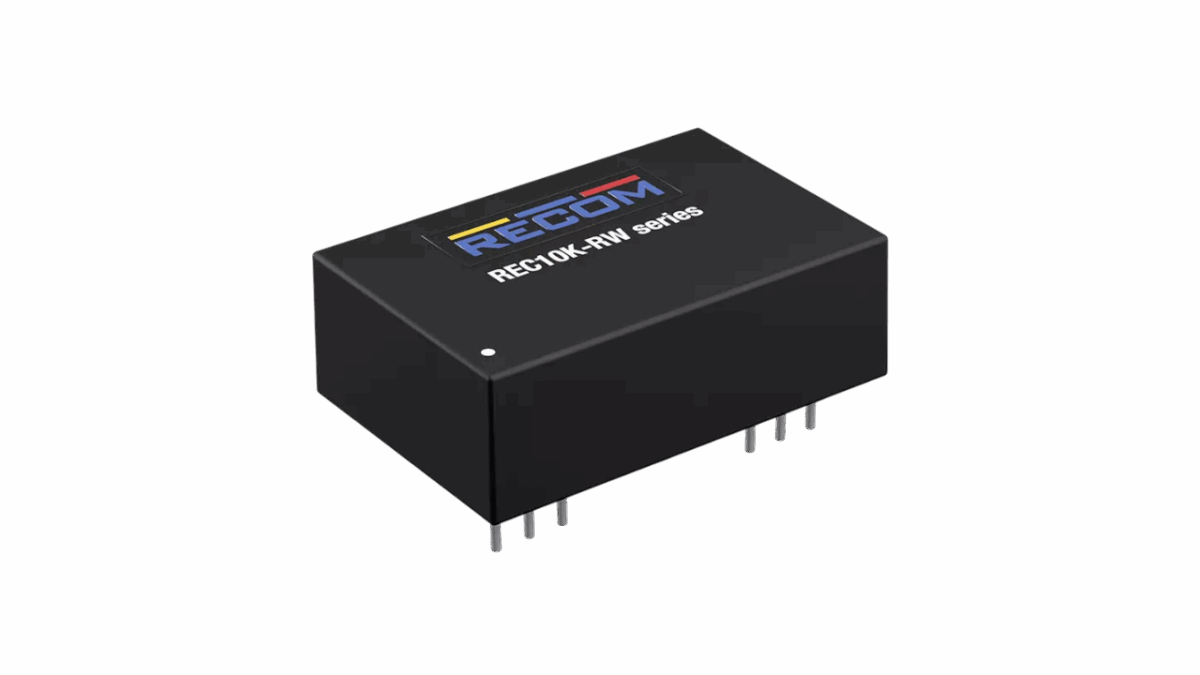

The REC10K-RW series comprises compact 10 W DC/DC converters with a wide input voltage range in an industrial DIP24 standard housing. Despite their small size, the modules are fully specified and deliver output currents of up to 2 A with high efficiency and stable regulation – without any minimum load.

An insulation resistance of 4,000 VDC (1 minute), low ripple, and low noise ensure reliable operation even in demanding applications. Extensive protection functions such as short-circuit, overcurrent, and overvoltage protection, as well as a ±10% output voltage trim, further increase operational reliability.
Thanks to their high power density, REC10K-RW converters are ideal for industrial applications with very limited PCB space.
Properties
- Industry standard DIP24 housing
- Temperature range up to 100°C (with derating)
- 4kVdc isolation
- Next 4:1 Entrance
- Remote ON/OFF
- Voltage Trim ±10%
- No minimum load
- 3-year guarantee
-

REC10K-4824DRW/H4
10W DC/DC converter, input 18...75V, output +/-24V / +/-210mACHF 13.70Available to order -

REC10K-4815DRW/H4
10W DC/DC converter, input 18...75V, output +/-15V / +/-330mACHF 13.70Available to order -

REC10K-4812DRW/H4
10W DC/DC converter, input 18...75V, output +/-12V / +/-420mACHF 13.70Available to order -

REC10K-4805DRW/H4
10W DC/DC converter, input 18...75V, output +/-5V / +/-1000mACHF 13.70Available to order -

REC10K-4824SRW/H4
10W DC/DC converter, input 18...75V, output 24V/420mACHF 13.70Available to order -

REC10K-4815SRW/H4
10W DC/DC converter, input 18...75V, output 15V/670mACHF 13.70Available to order -

REC10K-4812SRW/H4
10W DC/DC converter, input 18...75V, output 12V/830mACHF 13.70Available to order -

REC10K-4809SRW/H4
10W DC/DC converter, input 18...75V, output 9V/1110mACHF 13.70Available to order -

REC10K-4805SRW/H4
10W DC/DC converter, input 18...75V, output 5V/2000mACHF 13.70Available to order -

REC10K-483.3SRW/H4
6.6W DC/DC converter, input 18...75V, output 3.3V/2000mACHF 13.70Available to order -

REC10K-2424DRW/H4
10W DC/DC converter, input 9...36V, output +/-24V / +/-210mACHF 13.70Available to order -

REC10K-2415DRW/H4
10W DC/DC converter, input 9...36V, output +/-15V / +/-330mACHF 13.70Available to order -

REC10K-2412DRW/H4
10W DC/DC converter, input 9...36V, output +/-12V / +/-420mACHF 13.70Available to order -

REC10K-243.3SRW/H4
6.6W DC/DC converter, input 9...36V, output 3.3V/2000mACHF 13.70Available to order -

REC10K-2424SRW/H4
10W DC/DC converter, input 9...36V, output 24V/420mACHF 13.70Available to order -

REC10K-2415SRW/H4
10W DC/DC converter, input 9...36V, output 15V/670mACHF 13.70Available to order -

REC10K-2412SRW/H4
10W DC/DC converter, input 9...36V, output 12V/830mACHF 13.70Available to order -

REC10K-2409SRW/H4
10W DC/DC converter, input 9...36V, output 9V/1110mACHF 13.70Available to order -

REC10K-2405DRW/H4
10W DC/DC converter, input 9...36V, output +/-5V / +/-1000mACHF 13.70Available to order
