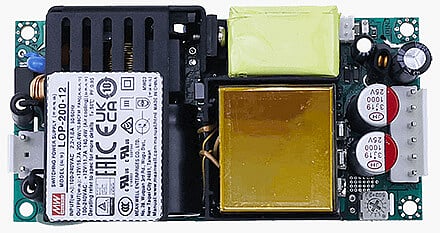

MEAN WELL LOP-200/300 Series: 200 Watt & 300 Watt 4″ x 2″ Open Frame Power Supplies with Low Profile

The power supply units with up to 300 watts of power are extremely compact and require little space in the application thanks to their flat design. To extend the range of applications, the power supply units are certified for industrial, medical, ITE and household applications.

In response to the increasing miniaturization, Simpex now offers the LOP series from MEAN WELL in its product range.

The open power supply units with up to 300W power are built on the standard industry footprint of 4″ x 2″ and have a low height of just 25.4mm.

There are 9 output voltages available per power class in the range from 12Vdc to 54Vdc. Thanks to the extensive certifications for medical (60601-1), industrial (61558-1/-2-16), ITE (62368-1) and household applications (60335-1), the overvoltage category III (OVC III) and the approval for protection class I or protection class II applications, the LOP series covers a very wide range of applications.

For applications with high starting currents, the power supplies also deliver up to 150% peak power.

Features LOP-200 / 300 series

• MEAN WELL Patented ZL 202223277512.1
• Very compact dimensions of 101.6 x 50.8 x 25.4mm (L x W x H)
• 80~264 Vac wide input range with PFC, No load power consumption <0.5W
• International certifications for various application areas
  (ITE/medical/industrial/household)
• Insulation for 2xMOPP, suitable for medical applications of type BF
• Delivers 150 % peak power for up to 3 seconds
• Suitable for protection class I (with earth connection) and protection class II (without earth connection)
• Operating temperature -40~+80℃
• Very high efficiency of up to 94
• Protective functions: Short circuit, overload, overvoltage, overtemperature
• Extremely low leakage current (<500µA to ground, <70µA against contact)
• Suitable for operation up to 5000 meters above sea level
• Built-in 12V/0.5A auxiliary voltage
• 3-year guarantee
