We are pleased to introduce the latest models of the RECOM RMOD series for mobility applications. These powerful and ready-to-use DC/DC converters are now available and offer a wide range of applications.

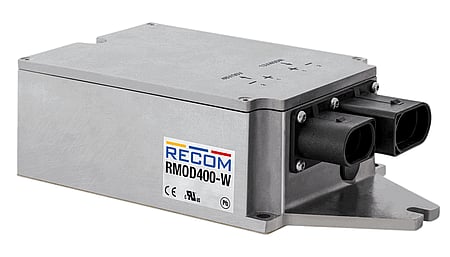

RMOD400-28-13SW:
-
RMOD400-28-13SW
400W Off Highway Vehicle DC/DC converter In: 16.8...56Vdc / Out 13Vdc/30.8ACHF 231.65Available to order
With an output power of 400W and an output of 13V, this model is ideal for nominal inputs of 24V, 28V or 36V. It offers a wide input range from 16.8V to 56V.
RMOD400-60-24SW:
-
RMOD400-60-24SW
400W Off Highway Vehicle DC/DC converter In: 33.6...96Vdc / Out 24Vdc/16.7ACHF 223.85Available to order
This model has a 24V output and is suitable for nominal inputs of 48V, 60V and 80V. The input range extends from 33.6V to 96V (with peaks up to 125V).

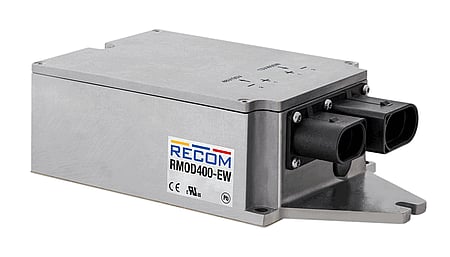

RMOD400-80-13SEW:
-
RMOD400-80-13SEW
400W Off Highway Vehicle DC/DC converter In: 33.6...125Vdc / Out 13Vdc/30.8ACHF 231.65Available to order
Offers a particularly wide continuous input range from 33.6V to 125V and a 13V output.

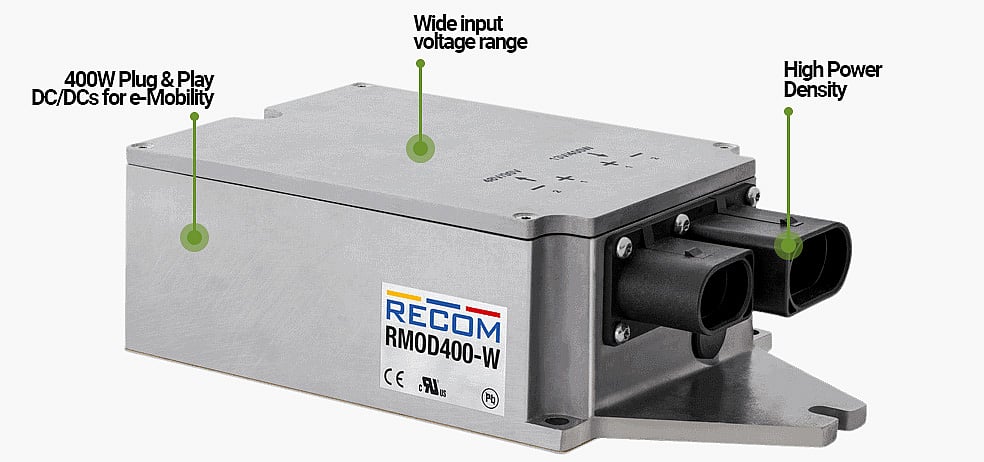

The RMOD400 series impresses with its high efficiency and is designed for fanless baseplate cooling with chassis mounting. With an insulation of 2.5kVDC and safety certifications according to IEC/EN/UL/CSA 62368-1, these models meet the highest safety standards. Their compact dimensions of 115 x 203 x 61mm (including mounting flanges) allow for easy integration.
Thanks to IP69K certification, all components are dust and waterproof, making them perfect for use in harsh environments, e.g. in railroads, forklift trucks and industrial material handling systems. Compliance with the EN 60068 standard ensures their robustness against temperature fluctuations, shocks, vibrations, moisture and salt spray.
With its high performance, comprehensive protection and sealed connectors, the RMOD400 series offers a true plug-and-play solution for a wide range of mobility applications.
Experience the future of mobility applications with the new RECOM RMOD DC/DC converters!
