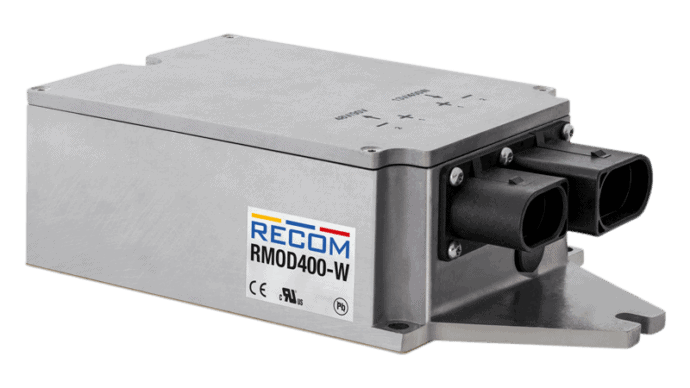

400W Off Highway Vehicle DC/DC converter In: 33.6...96Vdc / Out 24Vdc/16.7A
CHF 223.85 excl. VAT, plus shipping costs
Description
The RMOD families are extremely robust plug & play modules that are used to generate the low-voltage grid from a vehicle's traction battery. The extremely wide input voltage range up to 56V or 125VDC covers all common battery voltages in the off-highway vehicle (OHV) sector. Thanks to the waterproof and dustproof housing design, the devices can be mechanically and thermally connected directly to the chassis, i.e. at any point on the vehicle, and thus work reliably even under the most adverse conditions. This solution is ideal for electric vehicles with nominal 24V...36V or 48V...80V battery-powered systems in off-highway e-mobility applications such as material handling, forklifts, golf cars, AGVs, loaders, construction vehicles, airport equipment, people movers, special vehicles, vans, tractors, etc.
Technical data
- On-board DC/DC converter
- E-mobility and industrial vehicles
- Wide input voltage range for 24V/36V or 48V/80V
- Plug & Play, ready for immediate use
- Chassis mounting and base plate cooling
- Full power at an ambient temperature of up to 85°C
- Water and dustproof (IP69K), robust and reliable
- High and extremely constant efficiency
- Parallel operation without active current sharing
- High power density
- 2-year guarantee
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet RMOD400 | PDF(284 KB) |
|---|
Downloads
| 3D data RMOD400-60-24SW | Zip file (1.35 MB) |
|---|
Similar products
-
RMOD600-60-24SW
600W Off Highway Vehicle DC/DC converter In: 33.6...96Vdc / Out 24Vdc/25ACHF 351.55Available to order -
RMOD400-60-24SW
400W Off Highway Vehicle DC/DC converter In: 33.6...96Vdc / Out 24Vdc/16.7ACHF 223.85Available to order
