With the DBUF series from MEAN WELL , Simpex offers a compact and maintenance-free solution for reliably bridging voltage dips in 24VDC systems - ideal for a stable and uninterruptible power supply.
The modules are based on long-life electrolytic capacitors and are suitable for industrial applications where an uninterruptible power supply is required for critical components. Thanks to DIN rail mounting, they can be easily integrated into existing control cabinets.
The DBUF series is available in two versions with 20A and 40A, offers status signals for system monitoring and impresses with its long service life. External batteries or Chargeurs are not required - a reliable solution for increasing operational safety in automation, safety technology or communication.
Properties
- Energy storage via capacitors instead of batteries
- Buffer time up to 250mS at 40A or 62 seconds at 0.1A
- Buffer mode selectable via DIP switch
- Fixed switching at 22Vdc
- Dynamic mode with Vin -1Vdc
- Status monitoring via LEDs or status signals
- -25°C to +70°C Temperature range
-

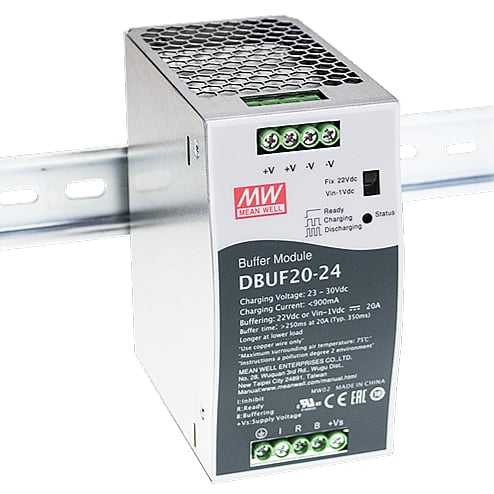

DBUF20-24
20A buffer module for 24V systemsCHF 84.2045 Available immediately -
DBUF40-24
40A buffer module for 24V systemsCHF 104.405 Available immediately
