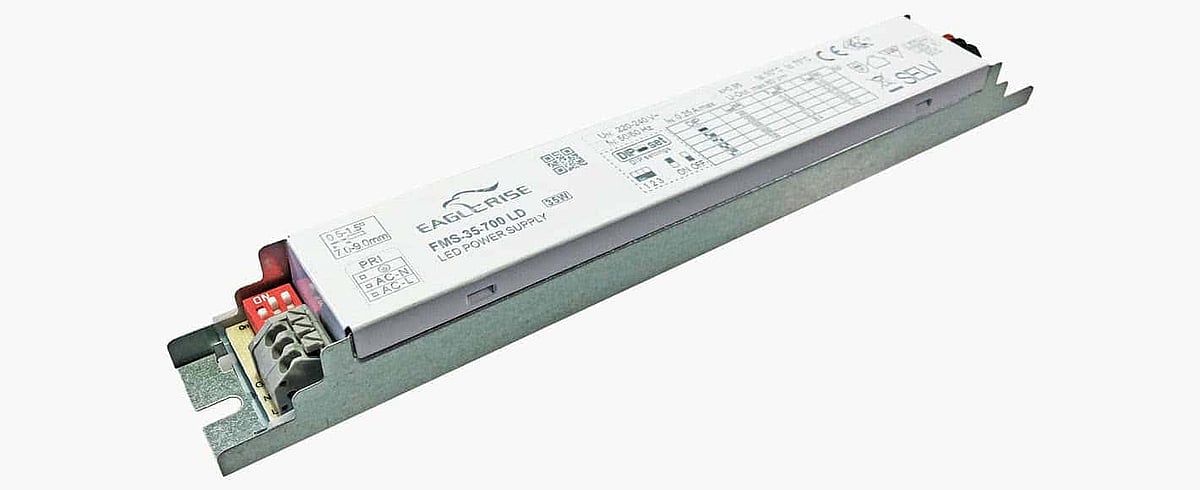

The Eaglerise FMS series are LED converters with constant current output. With a width of 30mm and a height of 21mm, the power supply units are suitable for installation in linear luminaires, e.g. for converting T8 neon tubes. Available in 3 power classes with 35 Watt, 55 Watt and 80W output, the power supply units cover the most common current and voltage ranges.
As a special feature, the output current can be set via a DIP switch on the LED driver. This means that the same driver can supply up to 5 different currents. This makes stock-keeping easier and it is possible to adjust the brightness during installation.
Properties
- Constant current output
- Protection class I Device with earth connection
- Power classes 35W, 55W, 80W
- SELV
- Built-in appliance
- Current selectable on DIP switch
- FMS-35-700 LD, 300/350/500/600/700mA, 15-52Vdc
- FMS-55-1050 LD, 800/900/950/1000/1050mA, 36-52Vdc
- FMS-80-1600 LD, 1200/1300/1400/1500/1600mA, 36-52Vdc
- Dimensions
- FMS-35-700 LD, 220 x 30 x 21mm
- FMS-55-1050 LD, 280 x 30 x 21mm
- FMS-80-1600 LD, 280 x 30 x 21mm
- 5 year guarantee
- Manufacturer Eaglerise
Products
-
FMS-80-1600 LD
80W LED driver constant current 1200/1300/1400/1500/1600mA, 36-52VdcCHF 32.00883 Available immediately -
FMS-55-1050 LD
55W LED driver constant current 800/900/1000/1050mA, 36-52VdcCHF 28.001123 Available immediately -
FMS-35-700 LD
35W LED driver constant current 300/350/500/600/700mA, 15-52VdcCHF 25.004301 Available immediately
