Buffer modules and redundancy modules

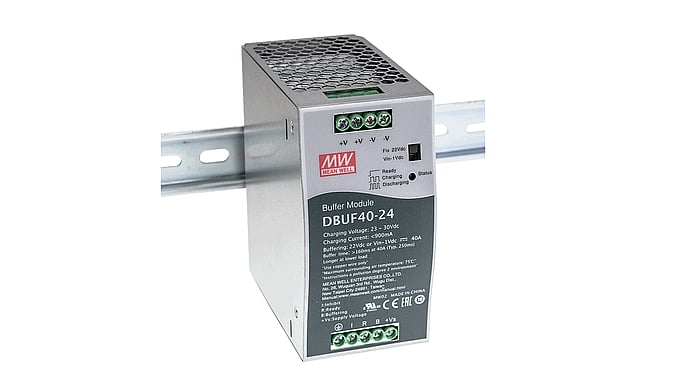

40A buffer module for 24V systems
CHF 104.40 excl. VAT, plus shipping costs
Item no:
DBUF40-24
Stock level:5 Available immediately
Packaging ex works:
12 piece
5+ CHF 104.40 CHF 99.50 (4%save)
10+ CHF 99.50 CHF 95.10 (8%save)
20+ CHF 95.10 CHF 92.40 (11%save)
Description
DBUF40-24 is a buffer module that can be used to extend the mains failure bridging time after a mains voltage failure. Electrolytic capacitors are used for energy storage.
Technical data
- Buffer module for short-term power failure bridging
- Suitable for 24V systems up to a maximum of 40A
- Typical bridging time 250mS at 22V / 40A
- Supports parallel connection to increase the bridging time
- 2 modes available: Activation when the voltage drops to 22Vdc or when the input voltage falls below 1Vdc
- Reverse polarity protection with MOSFET
- Control signals: Ready, Buffering, Inhibit
- LED indicators for Ready, Buffering
- Dimensions 63 x 125.2x 114.9mm (W x H x D)
- 3-year guarantee
Additional information
| DIN rail power supplies | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Data sheet DBUF40 | PDF(347.58 KB) |
|---|---|
| Test Report DBUF40 | PDF(254.86 KB) |
| DBUF Installation Manual | PDF(989.36 KB) |
| Carbon Footprint declaration DBUF40 | PDF(73.93 KB) |
Downloads
| 3D data DBUF40 | Zip file (4.19 MB) |
|---|
