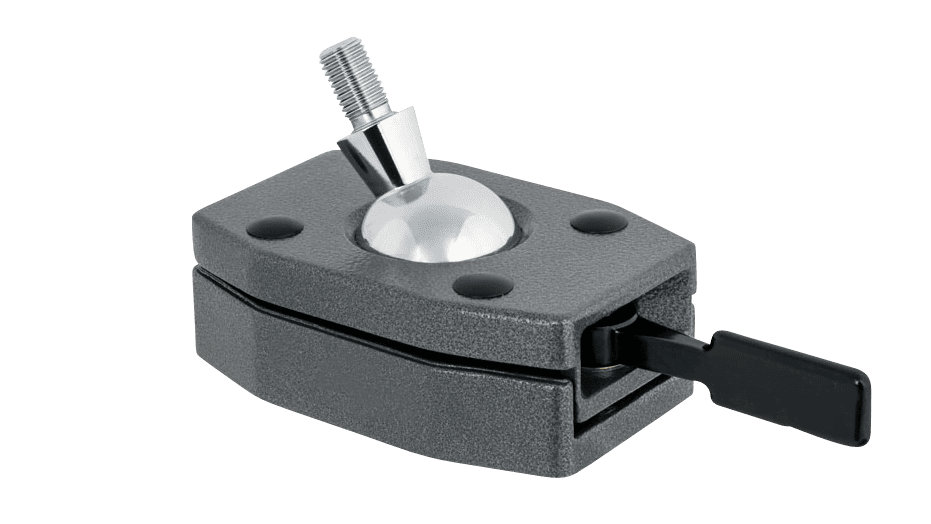

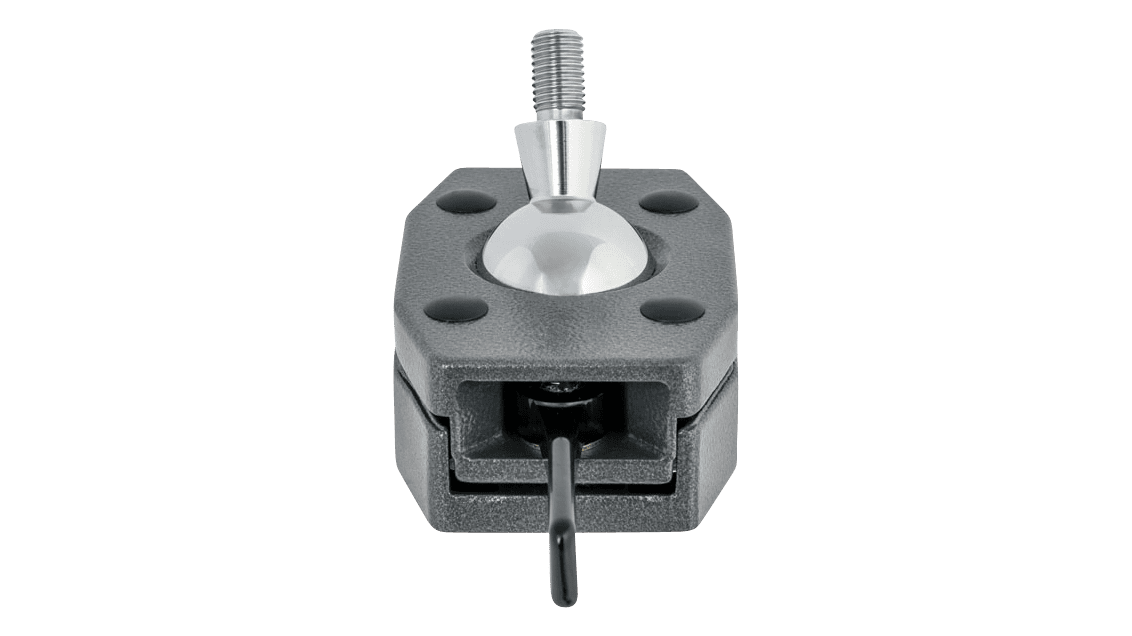

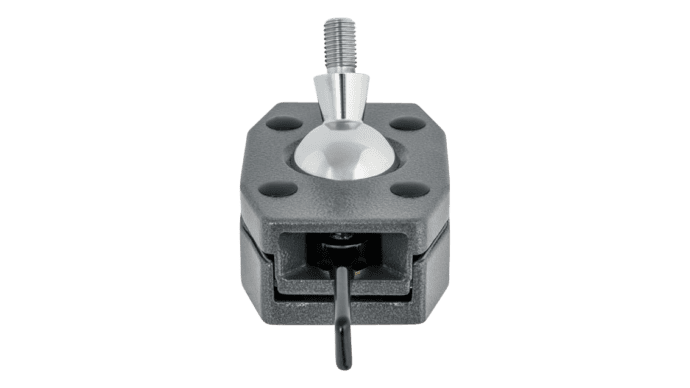

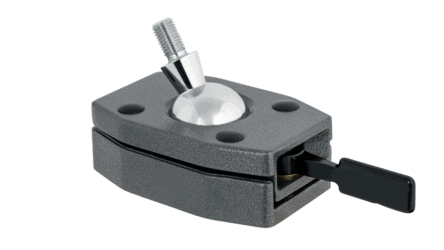

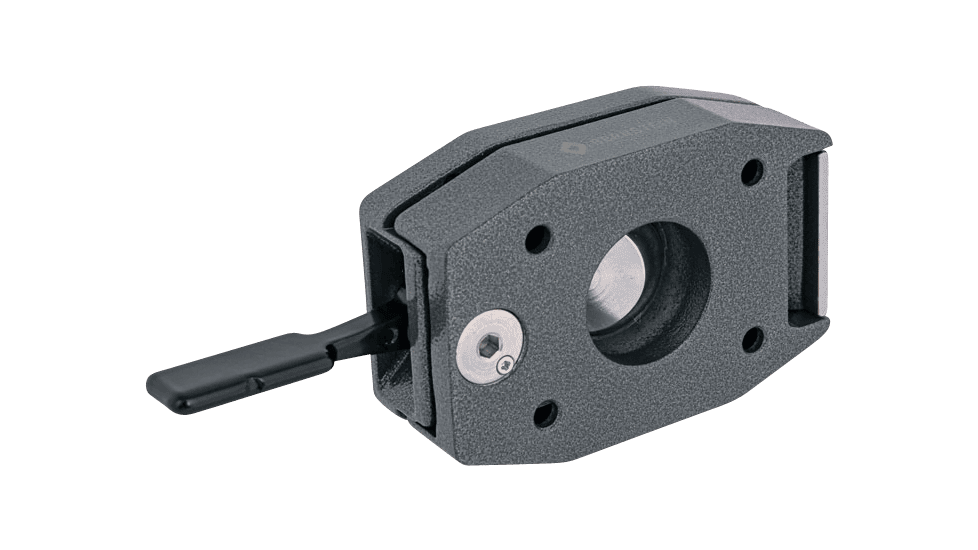

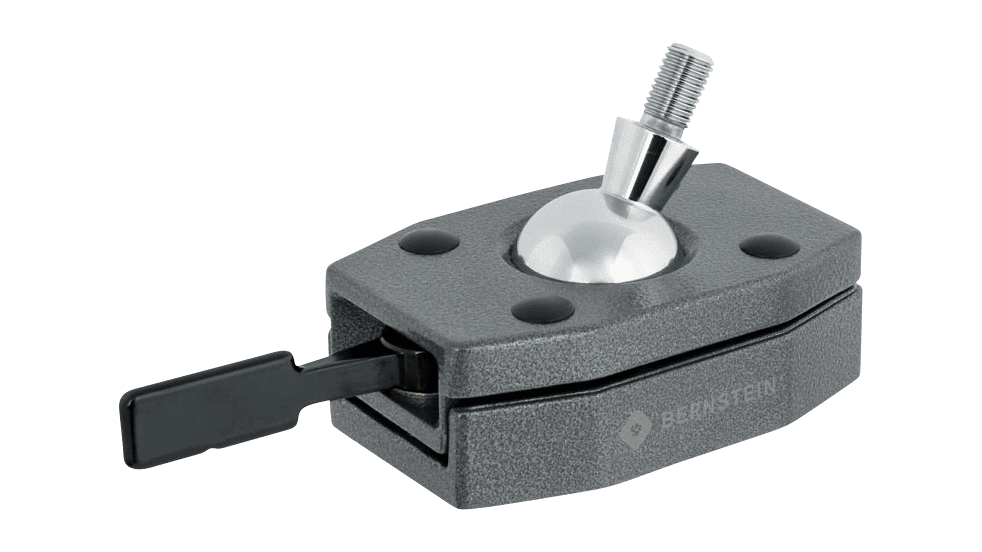

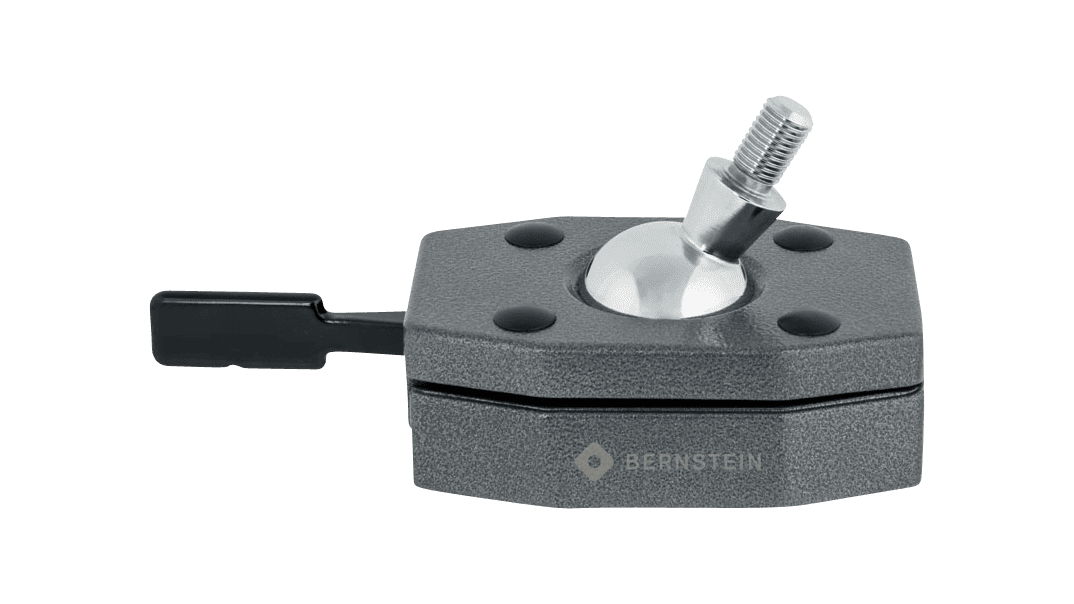

SPANNFIX ball joint base for screwing on, with 12 mm threaded pin
CHF 106.90 excl. VAT, plus shipping costs
Description
The ball-joint mounts are available in various ball diameters, each providing different holding forces. A slight pressure on the lever is all it takes to achieve stepless locking with a high holding force. The base can be clamped on, securely screwed in place, or fitted with built-in high-performance magnets. A quick-release mechanism for optimally aligning cameras, monitors, sensors, or measuring instruments. In woodworking, carving blocks, carving balls, or various clamping and holding tools are used. In instrument making and model building, a wide variety of clamping and holding devices are screwed on. Suitable adapters and extensions of all kinds can be screwed onto the thread on the ball. An optimal hold for repairing e-scooters, e-bikes, and bicycles in a free-floating position. Universities, research centers, and laboratories have valued its versatile applications and uses for years. The clamp-on mount is suitable for workbenches with a maximum tabletop thickness of up to 80 mm. The screw-on mount can be attached to workbenches, tables, and base plates via the four 9 mm through-holes. The high-performance magnets allow for customizable mounting that can be quickly adjusted as needed.
Technical data
- Ball-and-socket quick-release clamp for heavy parts, 360° rotatable, continuously lockable, quality product Made in Germany
- For bolting to a workbench (mounting dimensions: 110x72 mm)
- Threaded stud M12 x 1.5 x 20 mm
- Mounting surface approx. Ø 20 mm
- Tilt angle +/- 45°
- Included in the scope of delivery:, Schnorr washer and lock nut, lock nut for the thread
- Cast aluminum, powder-coated, dark grey metallic
- Approximate dimensions: 80 x 170 x 75 mm
- Weight 650 g
Additional information
| Étau Spannfix | ||||||
|---|---|---|---|---|---|---|
|
||||||
| Maintenance aids | ||||||
|
|
||||||
| LEDs | ||||||
|
|
||||||
Data sheets
| DE-Brochure | PDF(4.1 MB) |
|---|---|
| EN-Brochure | PDF(11.94 MB) |
