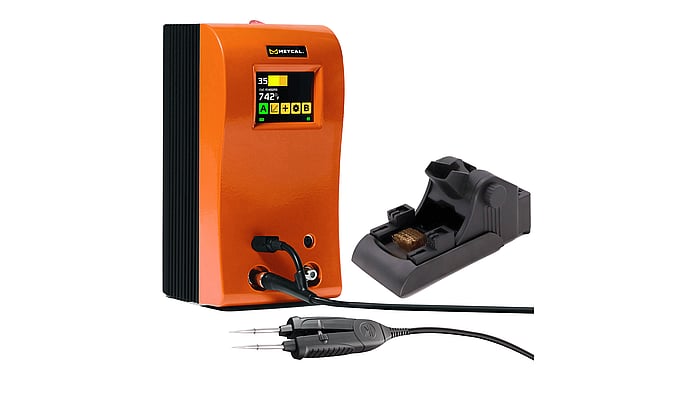

CV-5260, MicroFine System – Tweezer Handpiece
Book a demo nowCHF 1'105.00 excl. VAT, plus shipping costs
Description
The Metcal CV-5260 MicroFine Soldering and Rework System combines the proven performance and precise process control of the Metcal CV Series with an exceptionally compact and precise handpiece for demanding work on microcomponents down to size 01005.
MicroFine cartridges are available with exceptionally small diameters and geometries down to 0.1 mm. As a result, the system offers high precision when working on densely populated printed circuit boards and sensitive microcomponents.
Technical data
- SmartHeat® technology - power on demand
- Patented Connection Validation™ technology monitors the formation of the IMV
- 2.8″ color touchscreen with rich graphics
- USB interface for exporting traceability data and firmware updates
- Soldering tip temperature display can be switched on
- Closed control loop, bidirectional communication
- Storage of data directly in the soldering cartridge
- Provides information on traceability
- Protects the power supply unit from faulty solder cartridges
- The CV soldering cartridges are backwards compatible with all MX soldering systems
- Password protection
- Large selection of soldering cartridges available
- TO THE MATCHING TIPS
Scope of delivery
Additional information
| Soldering stations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| Maintenance aids | ||||||||||||||
|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
Data sheets
| Technical data sheet | PDF(5.41 MB) |
|---|---|
| Manual | PDF(4.75 MB) |
