Soldering tools

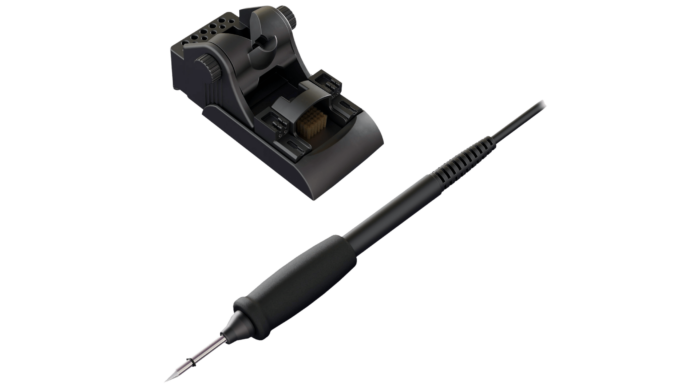

Metcal MicroFine CV handpiece + work stand
CHF 239.20 excl. VAT, plus shipping costs
Item no:
CV-UK9
Stock level:3 Available immediately
Description
- MicroFine Solder Handpiece for Connection Validation (CV) systems, specially developed for working under the microscope. Includes MFH-WS9 work stand.
- Compatible with Metcal MFTC cartridges
- MicroFine tips are available in chisel, conical, curved and hoof geometries
- The tips are available in the 600 (357 °C) and 700 (413 °C) series
- The soldering temperature is defined by Metcal SmartHeat® Inductive Heating Technology, always only as much as the solder joint needs for an optimum soldering process
- Work stand for MicroFine soldering handpieces
- Built-in tip holder
- Adjustable bracket
- Integrated brass cleaning brush
- TO THE MATCHING TIPS
Scope of delivery
Additional information
| Soldering tools | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| LEDs | ||||||||||||
|
|
||||||||||||
Data sheets
| Brochure | PDF(1.5 MB) |
|---|---|
| Workstand | PDF(2.23 MB) |
Videos
Accessories
-
AC-MFCH
Cable holder for MFH-WS9 & MFT-WS10 MicroFine workbench standCHF 19.205 Available immediately -
MFTC-7CNB4501
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.1 mm x 4.5 mmCHF 35.405 Available immediately -
MFTC-7CNBR4501
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.1 mm x 4.5 mmCHF 35.40Available to order -
MFTC-7CN5001
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.1 mm x 5 mmCHF 35.405 Available immediately -
MFTC-7CNR5001
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.1 mm x 5 mmCHF 35.403 Available immediately -
MFTC-7CNB5602
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.2 mm x 5.6 mmCHF 35.405 Available immediately -
MFTC-7CNB4503
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.3 mm x 4.5 mmCHF 35.40Available to order -
MFTC-7CN5003
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.3 mm x 5 mmCHF 35.405 Available immediately -
MFTC-7CNB4505
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.5 mm x 4.5 mmCHF 35.40Available to order -
MFTC-7CN5005
Metcal MicroFine 700 series soldering tip cartridge, conical, 0.5 mm x 5 mmCHF 35.40Available to order -
MFTC-7HF5006
Metcal MicroFine 700 series soldering tip cartridge, solder depot, 0.6 mm x 5 mmCHF 35.40Available to order -
MFTC-7CH5002
Metcal MicroFine 700 series soldering tip cartridge, chisel, 0.2 mm x 5 mmCHF 35.402 Available immediately -
MFTC-7CC5007
Metcal MicroFine 700 series soldering tip cartridge, chisel, 0.3 mm x 0.7 mm x 5 mmCHF 35.401 Available immediately -
MFTC-7CH5004
Metcal MicroFine 700 series soldering tip cartridge, chisel, 0.4 mm x 5 mmCHF 35.402 Available immediately -
MFTC-7CH5006
Metcal MicroFine 700 series soldering tip cartridge, chisel, 0.6 mm x 5 mmCHF 35.401 Available immediately -
MFTC-7CH5008
Metcal MicroFine 700 series soldering tip cartridge, chisel, 0.8 mm x 5 mmCHF 35.40Available to order -
MFTC-7CH5012
Metcal MicroFine 700 series soldering tip cartridge, chisel, 1.2 mm x 5 mmCHF 35.40Available to order
