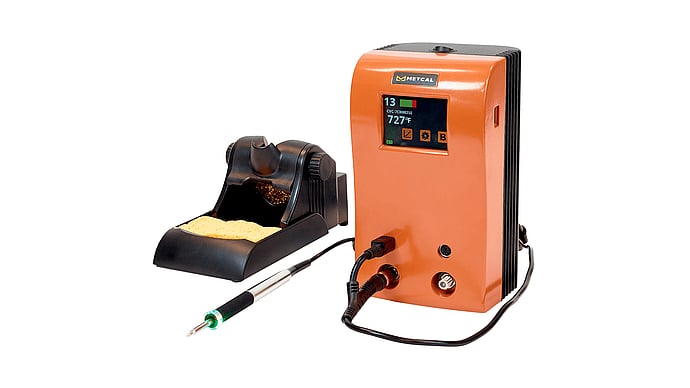

CV-510 Soldering and post-processing system 40W
CHF 735.00 excl. VAT, plus shipping costs
Description
Metcal has been shaping the industry with innovative technologies for decades. It all started with SmartHeat® technology, which detects the thermal load and immediately delivers the required power directly to the solder joint. The integrated, self-regulating heating element delivers exactly the power required for the respective solder joint. The result is a fast, safe and repeatable process - without any calibration.
The thickness of the intermetallic connection layer (IMC) is decisive for the quality of a solder joint. The patented Connection Validation™ technology reliably monitors the formation of this layer.
Technical data
- SmartHeat® Power-on-Demand technology for precise power output
- Patented Connection Validation™ IMC technology to ensure high-quality solder joints
- 2.8″ color touchscreen with clear graphic display
- Communication port for process data tracking and firmware updates
- Precise temperature display of the soldering tip
- Integrated Net Power Meter with power diagram
- Chip-in-cartridge technology (patented)
- Closed, bidirectional communication
- Storage and management of soldering tip attributes
- Traceability of relevant process information
- Power supply protection against incompatible soldering tips
- Backwards compatible with MX series power supplies
- Password protection for increased security
Scope of delivery
Additional information
| Soldering stations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
