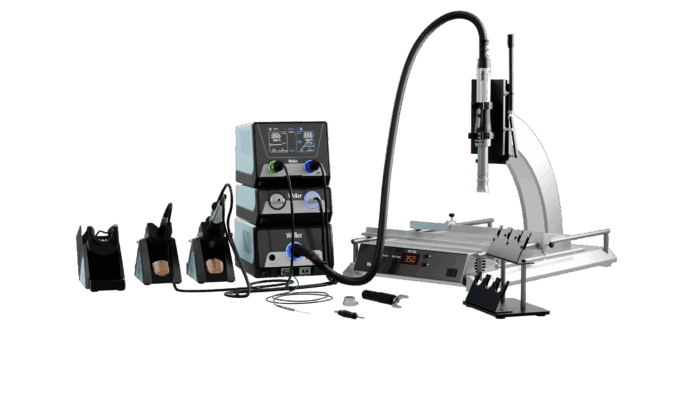

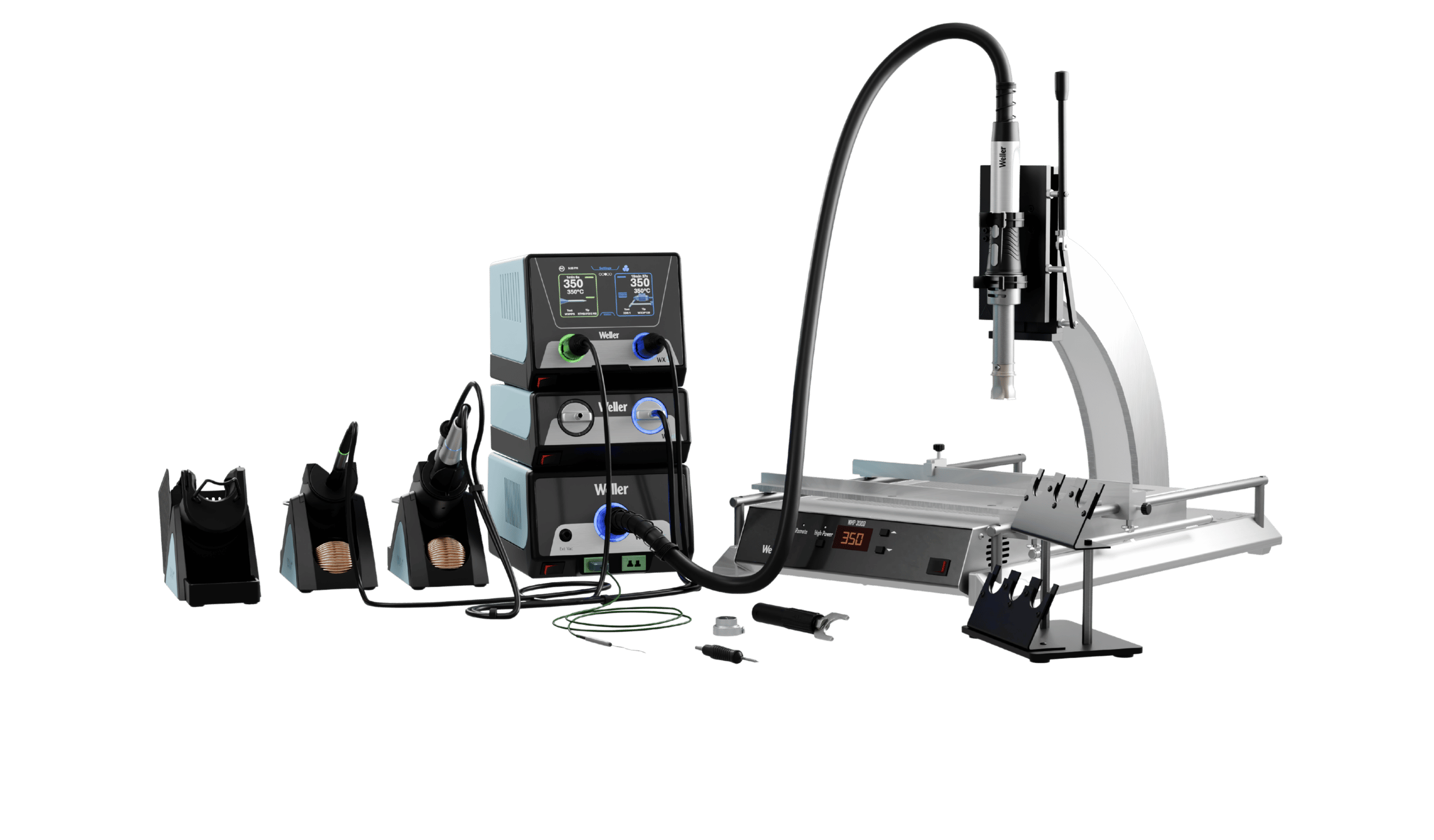

WXS 2032 WXHotAir Expert Set 230V
CHF 7'799.00 excl. VAT, plus shipping costs
Description
The Weller WXS2032 WXHotAir Expert Set 230 V is a high-performance, modular rework system for professional electronics manufacturing, repair, and development. The WXHotAir delivers up to 900 W of regulated hot air and enables uniform, controlled heating—even on multilayer, copper-rich, and heat-sensitive circuit boards.
The set combines the WXsmart, WXHotAir, WXair, WHP 3000 infrared preheating plate, and WBHS PCB holder, thereby covering demanding soldering, desoldering, and hot-air rework applications. The modular platform enables safe, reproducible, and traceable processes.
Optional, free Windows software featuring real-time sensor tracking, graphical temperature trends, user management, and project-based data storage ensures maximum transparency, security, and traceability throughout the entire rework process and enables reproducible results while remaining easy to use.
Benefits and Features
- Professional 900-W Hot-Air Rework System
- Suitable for SMD, THT, and mixed-technology applications
- Uniform heating without mechanical stress
- Temperature range: 50–600 °C
- Consistent and precise thermal performance
- WXsmart Platform for Centralized Control and Modular Expansion
- WXair Module for Additional Rework Applications
- WHP 3000 Infrared Preheating Plate, 1200 W
- WBHS Circuit Board Holder with Tripod
- Integrated vacuum mount
- Thermocouple Monitoring
- Ideal for demanding work on multilayer printed circuit boards
- ESD-safe, RoHS- and CE-compliant
- Optional software or software included in the set for process monitoring and documentation
- Hot-air nozzles: NQ, NR, NRV, ND, TNR –IMPORTANT: TNR/B nozzles may only be used with a TNA nozzle adapter
Technical data
- Power: 2370 W
- Voltage: 230V
- Temperature range: 50–600 °C
- Air flow rate: 1–50 L/min at 50 °C; 2–90 L/min at 300 °C
- Heating time 50–350 °C: approx. 15 s
Scope of delivery
- WXHotAir Set 230V F/G
- WXsmart Power Supply Unit 230V F/G
- WXMPS MS Handpiece for RTMS/RTPS MS TIPS
- WSR 208 Safety Tray for WXPP
- RTMS 013 S MS Chisel Tip 1.3X0.4
- RTPS 004 S MS Chisel Tip 0.4 x 0.2
- WXDP 120 desoldering iron
- WSR 207 Safety Tray for WXDP120
- Cleaning Tool WXDP/DSX 120
- WXair Module 100-230V F/G
- WBHS PCB Board Holder with Stand
- WHP 3000 Infrared Preheating Plate 230V 1200W F/G
- WX Adapter for WFE / WHP
- WX connection cable
- WX Connection Cable for Temperature Sensor for WCB2
- Nozzle Holder (6UP)
Additional information
| Repair stations | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| Soldering stations | ||||||||||||||||
|
|
||||||||||||||||
| Maintenance aids | ||||||||||||||||
|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
Data sheets
| TDS-EN | PDF(88.92 KB) |
|---|---|
| TDS-FR | PDF(88.56 KB) |
| TDS-IT | PDF(87.54 KB) |
| TDS-ENG | PDF(87.12 KB) |
| Brochure-DE | PDF(2.49 MB) |
| Brochure-ENG | PDF(2.48 MB) |
| Operating instructions | PDF(7.57 MB) |
Accessories
-
0058736880
NQ Hot Air Nozzle, 4-sided heating, 24.0 x 12.0 mmCHF 365.00Available to order -
0058736839
NQ05 Hot-Air Nozzle, 4-sided heating, 10.7 x 10.7 mmCHF 107.40Available to order -
0058736818
NQ10 Hot Air Nozzle, Heated on 4 Sides, 14.8 x 14.8 mmCHF 107.35Available to order -
0058736838
NQ15 Hot-Air Nozzle, Heated on 4 Sides, 4.5 x 10.0 mmCHF 118.70Available to order -
0058736837
NQ20 Hot-Air Nozzle, 4-Sided Heating, 15.5 x 13.0 mmCHF 107.40Available to order -
0058736814
NQ25 Hot-Air Nozzle, 4-sided heating, 18.0 x 18.0 mmCHF 107.35Available to order -
0058750721
NQ30 Hot Air Nozzle, 4-sided heating, 17.5 x 23.5 mmCHF 116.40Available to order -
0058736807
NQ35 Hot-Air Nozzle, 4-sided heating, 20.5 x 20.5 mmCHF 107.35Available to order -
0058736804
NQ40 Hot-Air Nozzle, 4-Sided Heating, 26.0 x 26.0 mmCHF 107.40Available to order -
0058736833
NQ45 Hot Air Nozzle, 4-sided heating, 31.3 x 31.3 mmCHF 143.50Available to order -
0058736891
NQ50 Hot-Air Nozzle, 4-sided heating, 36.0 x 36.0 mmCHF 392.10Available to order -
0058736890
NQ55 Hot-Air Nozzle, 4-sided heating, 43.0 x 43.0 mmCHF 447.00Available to order -
0058750739
NQT Hot-Air Nozzle, 4-sided heating, no protruding edge, 22.0 x 22.0 mmCHF 355.00Available to order -
0058750741
NQT10 Hot-Air Nozzle, 4-sided heating, no protruding edge, 14.8 x 14.8 mmCHF 139.00Available to order -
0058750742
NQT25 Hot-Air Nozzle, 4-sided heating, without protruding edge, 18.0 x 18.0 mmCHF 99.00Available to order
