Repair stations
MRS-1100A Modular rework system
CHF 6'050.00 excl. VAT, plus shipping costs
Item no:
MRS-1100A
In stock: Available to order
Description

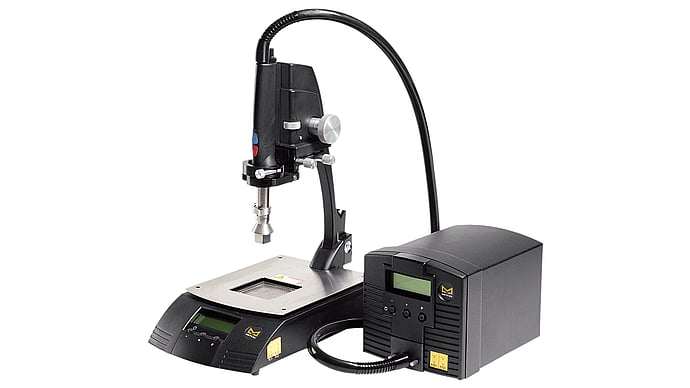

The MRS-1100A modular rework system is based on convection heat and is designed for the removal and placement of BGA and SMT components.
The manual rework system consists of a manually guided hot air system, an underheater, a stand for the hot air pen and a PCB holder. A large selection of hot air nozzles for various applications complete the system modules.
Technical data
- Digital display for information on temperature and profile sequence
- Underheating with closed control loop for process-safe rework
- Simple profile creation and repeatable processes
- Integrated vacuum pipette for easy removal of components
- The hot air handpiece can be guided manually or fixed in the multifunctional stand
. The hot air handpiece can be guided manually or fixed in the multifunctional stand. - Manual operating mode for quick adjustment
- External thermal sensors for profiling and verification
- Digitally controlled fan to control the air flow
- X, Y, Z and theta adjustments for aligning the component
- Adjustable PCB holder for easy alignment of the PCB
- Automatic lifting of the component using a vacuum pipette
- Soldering profiles can be protected with a password
