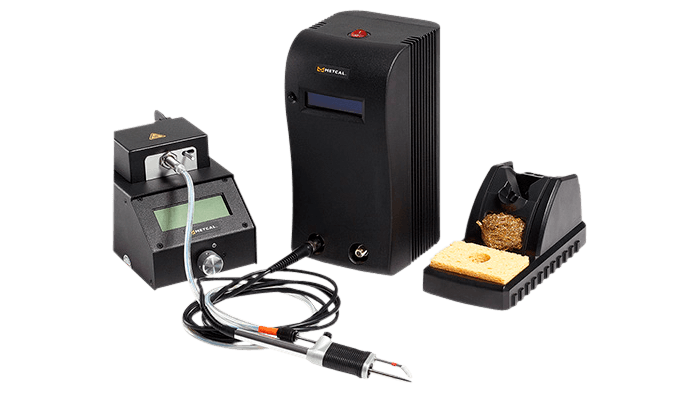

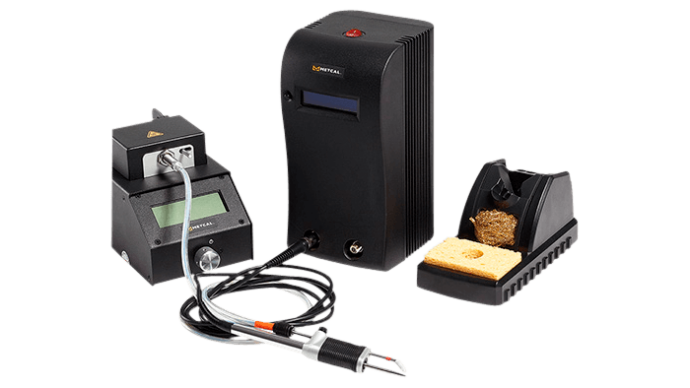

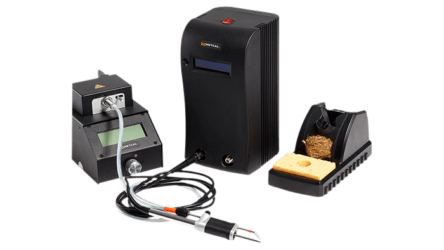

MX-5270 Solder wire, feed system, MX series
CHF 1'341.00 excl. VAT, plus shipping costs
Description
The Metcal MX-5270 ESD-safe digital solder wire feed system provides greater control and convenience, increasing the speed of the soldering process and the efficiency of the system. Thanks to its digital control and high performance, this system can manage multiple solder wire diameters and offers repeatability and functionality for your soldering process. The MX-5270 can be combined with Metcal's MX-5200 and MX-500 series soldering and rework systems.
Technical data
- Digital controls with multiple operating modes: feed, retract, deceleration and speed are programmable parameters either in automatic forward or forward or reverse mode.
- Large LCD display: Displays program parameters and a cycle counter with selectable unit of measure, millimeters or inches.
- Internal program memory: Stores thirty (30) programs internally, allowing the operator to select the right program for the right application
- Password protection: Prevents unintentional changes to saved programs
- Multiple solder diameters: Compatible with solder joints
- Diameters from 0.3 mm to 1.27 mm
- Solder feed blades: Reduces the tendency for solder balls to form at the point of use
- Solder coil lock: Secures the solder coil on the device
- Universal power supply: Automatically detects input voltage and adjusts accordingly, allowing worldwide operation without adapters or a change in power
Scope of delivery
- MX-PS5200: Double soldering station MX - 5200
- USF-1000: Soldering iron feeder
- MX-H7-SF: Handpiece for soldering iron feeder
- USF-FTA-12 feed pipe assembly
- USF-GTA-12 Teflon nozzle
- AC-FS1 foot switch and WS1 sleeper stand
- MX-CP1Heat-resistant pad for changing soldering cartridges
- CH Mains cable
- excl. piston and tips
Additional information
| Repair stations | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
Data sheets
| TDS - Metcal solder wire feeder | PDF(443.73 KB) |
|---|---|
| TDS - USF-1000 | PDF(2.39 MB) |
Accessories
-
MX-UK1
Advanced soldering handle and storage stand for MX systemCHF 228.002 Available immediately -
MX-UK5
Upgrade kit with MX-DS1 and storage standCHF 494.001 Available immediately -
MX-UK2
Upgrade kit with MX-H2-UF and storage standCHF 259.00Available to order -
MX-UK6
Upgrade kit with MX-H6-HTD and storage standCHF 216.002 Available immediately -
MX-UK4
Upgrade kit with forceps handpiece and storage standCHF 444.00Available to order
Similar products
-
0053379699
WR 2000D Set 230V, 2-channel desoldering station, 250 WCHF 1'535.00Available to order -
0053364899
WHP 1000 preheating plateCHF 2'125.60Available to order -
PCT-1000
Hot plate, programmable, 230 V, 1200 WCHF 1'659.602 Available immediately -
0053173399
WTHA 1 Hot air station 900 W SETCHF 891.501 Available immediately -
0053368699

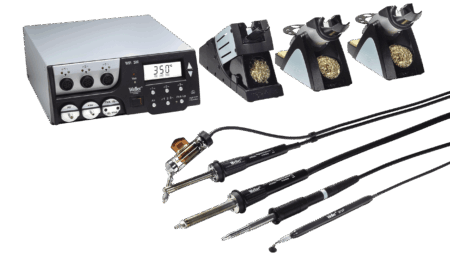

WR3000M Set 230V, 3-channel rework station set, 360 W, for horizontal workCHF 2'850.00Available to order -
