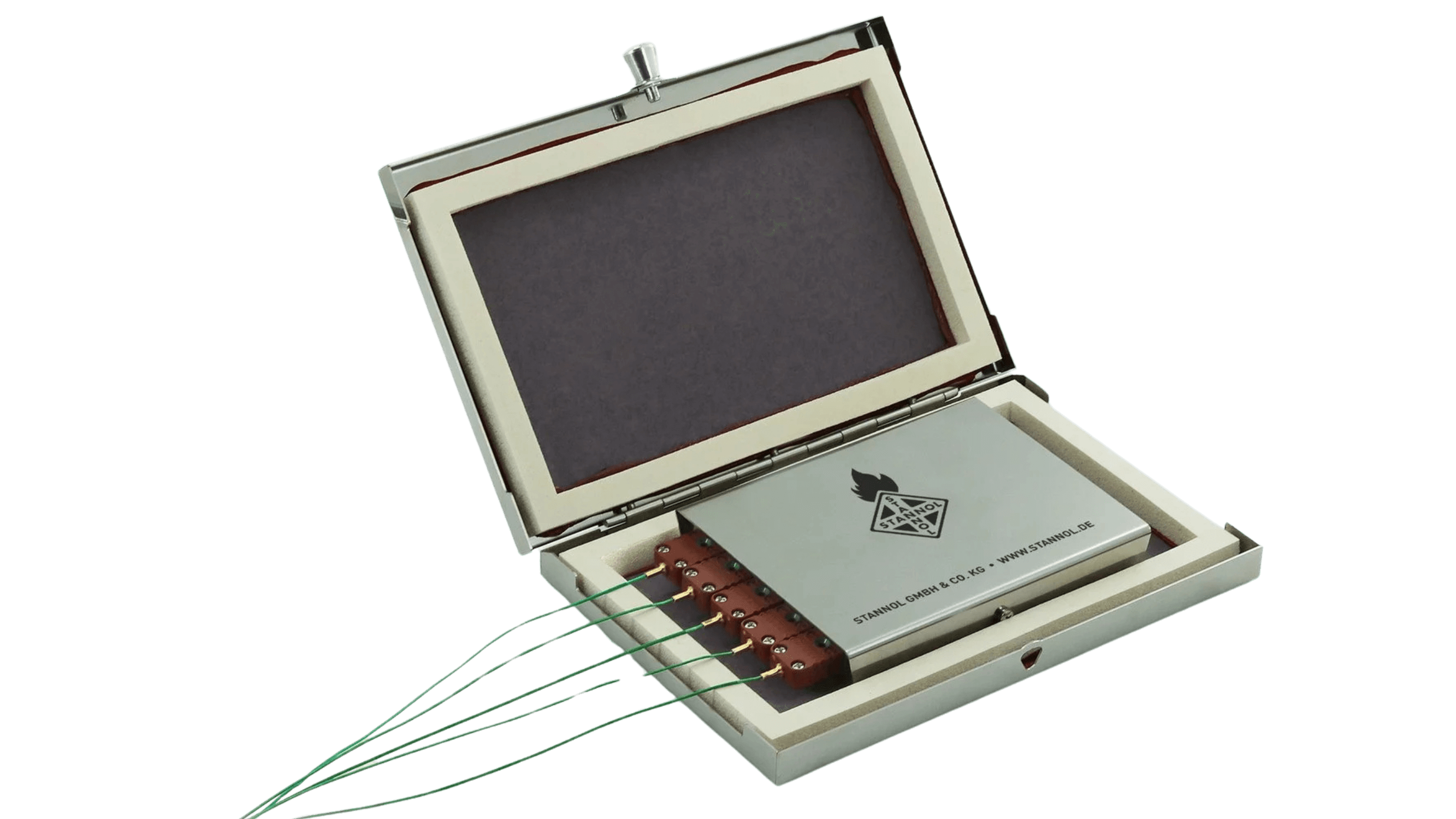

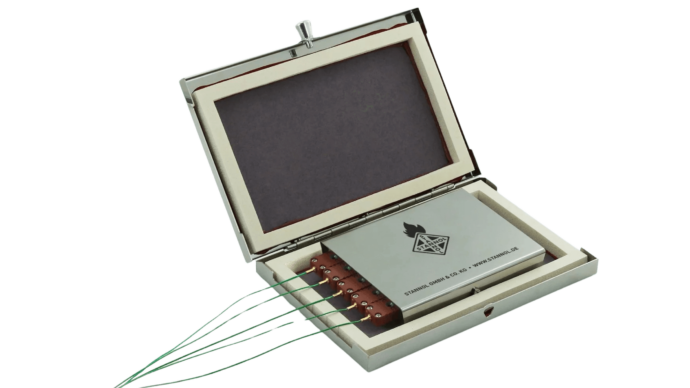

Thermologger 5000, temperature profile measuring device for wave, reflow and vapor phase soldering systems

CHF 2'835.00 excl. VAT, plus shipping costs

Item no: 880450
In stock: Available to order
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

Portable, compact and reliable temperature profile measuring device for wave, reflow and vapor phase soldering systems. Extremely simple operation enables precise measurement and recording of temperatures for process control.

  • Very simple operation
  • Portable, robust and compact
  • only 23 mm high (126mm x 100mm x 23mm)
  • 5 measurement/data channels (type K)
  • max. measuring frequency: from 10Hz
  • Dynamic memory management
  • Resolution: 0.1 °C
  • Accuracy: ± 0.5 °C
  • Integrated battery
  • User-friendly evaluation software
  • Measuring range: 0 - 400ºC

Scope of delivery

  • Thermal Box
  • 5 Thermocouple (NiCr-Ni / type K)
  • USB connection cable to the PC
  • USB stick with evaluation software (German / English) for Windows ® and manual
  • 9 V battery
  • 20g high-temperature solder for attaching the thermal sensors
  • Temperature-resistant adhesive tape for attaching the thermocouples
  • Transport case

Additional information

Measuring tool
Manufacturer

STANNOL

Tool type

Temperature measuring device
LEDs
Soldering accessories

Data sheets

Technical data sheet PDF(110.3 KB)
Operating instructions PDF(588.8 KB)
