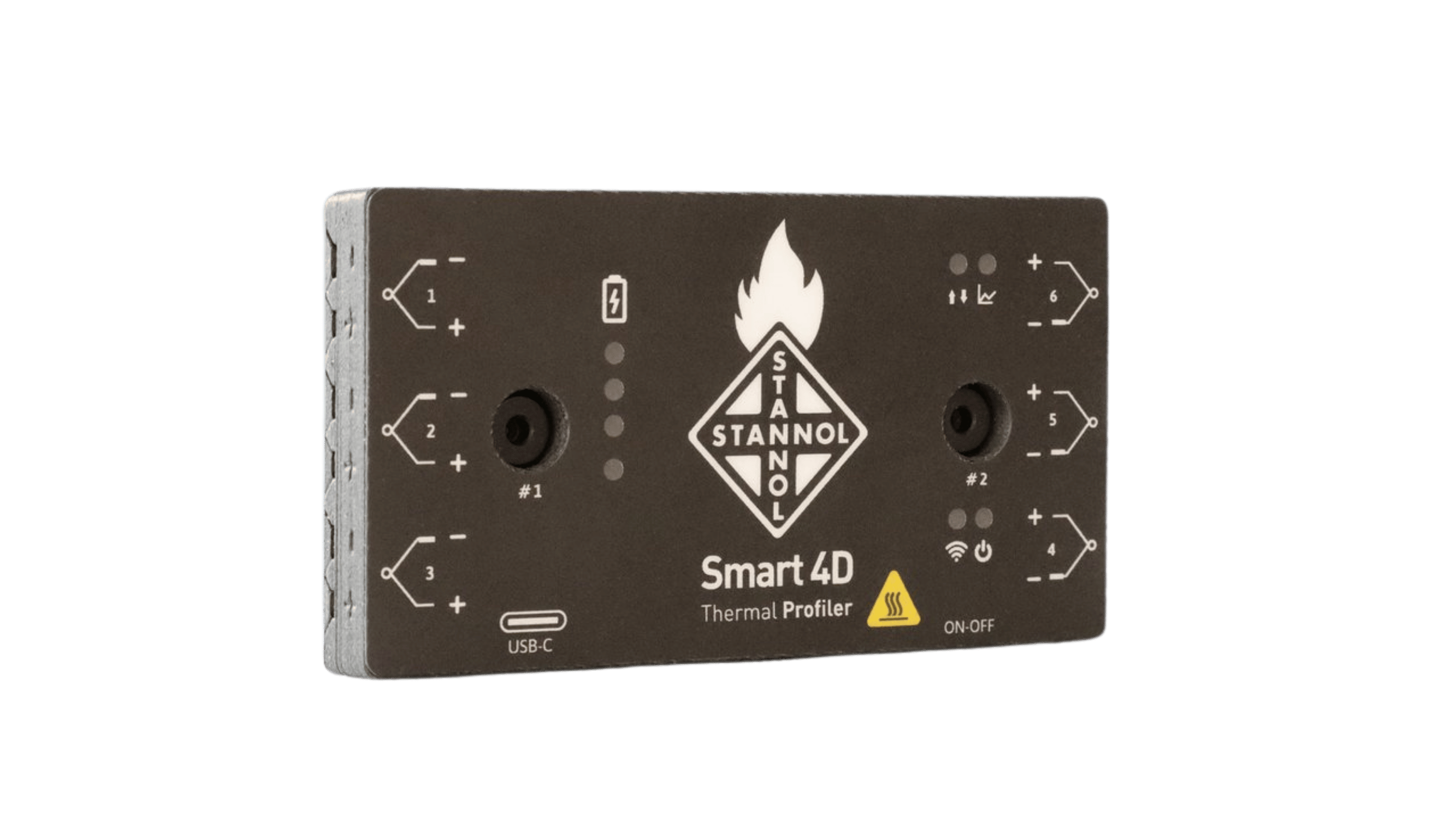

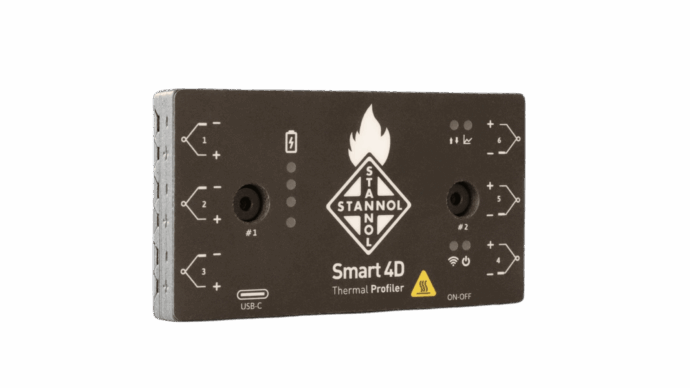

STANNOL Smart 4d Thermal Profiler
CHF 6'050.00 excl. VAT, plus shipping costs
Item no:
880451
In stock: Available to order
Description
The STANNOL Smart 4D Thermal Profiler is an innovative measuring system for professional soldering process analysis. Unlike traditional temperature profiler systems, this device not only records temperature curves, but also evaluates other parameters relevant to decision-making. This improves the quality of soldering processes and sustainably increases production efficiency.
Technical data
- Portable, robust, and compact design
- Dimensions (with protective cover & insulation): 281 × 80.5 × 27.5 mm
- Resolution: 0.1 °C
- Accuracy: ± 0.5 °C
- Measurement rate: 0.1 to 50 measurements per second
- Temperature measuring range: –250 °C to +1200 °C
- 6 measuring channels for temperature sensors (type K)
- 2 pyrometers for plant monitoring
- Acceleration sensors (XYZ) for vibration measurement
- Software for analyzing and optimizing soldering processes
- Rechargeable AAA Ni-MH battery, rechargeable via USB-C
- Warranty: 2 years
Scope of delivery
- Protective cover with insulation
- 6 thermal sensors (type K)
- Carrier for insertion into the soldering oven
- USB connection cable to PC
- USB stick with evaluation software (German/English, Windows®) and manual
- USB Wi-Fi docking station
- protective gloves
- 6 strips of aluminum tape for securing the temperature sensors
- Transport case
Additional information
| Measuring tool | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
|
||||
| Soldering accessories | ||||
|
|
||||
Data sheets
| Technical data sheet | PDF(331.49 KB) |
|---|---|
| Operating instructions | PDF(2.27 MB) |
