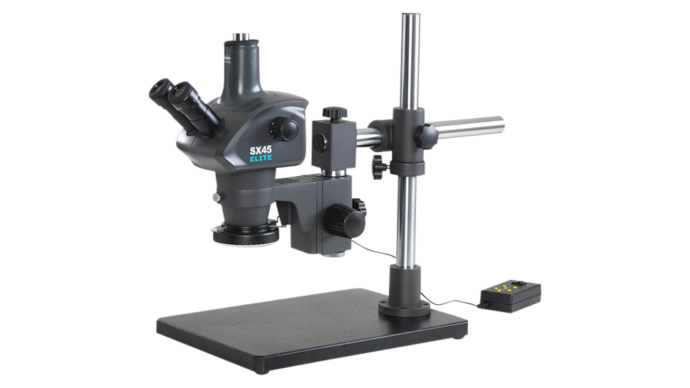

SX45 Elite stereo zoom eyepiece microscope trinocular device with column stand
CHF 2'900.00 excl. VAT, plus shipping costs
Description
The SX45 Elite stereo zoom eyepiece microscope trinocular device with column stand is a high-quality microscope that is ideal for use in laboratories, research, industry and education. It is based on the Greenough optical principle and offers a robust design and simple operation. The image remains sharp over the entire zoom range.
This microscope offers excellent image quality and flexibility for professional applications and documents results efficiently.
Technical data
- Zoom factor: 6.3:1
- Magnification: x4 - x200 (with x20 eyepieces)
- Eyepieces: 22 mm, field number / field of view, with diopter adjustment
- Working distance: 220 mm
- Lighting: LED with a service life of 6,000 hours, adjustable incident and transmitted light
- Trinocular head for camera connection
- Power supply: 110V - 240V
- Equipment: Column stand with base plate, ring light with dimmable power supply unit
Additional information
| Inspection systems | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
Data sheets
| Brochure | PDF(903.24 KB) |
|---|
