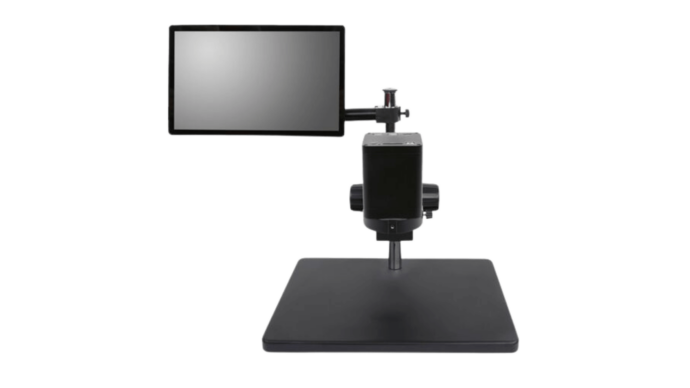

MZ.4700-HDS Digital autofocus macro zoom,standard tripod,11″HD screen,4K
Book a demo nowCHF 2'050.00 excl. VAT, plus shipping costs
Description
MZ.4700-HDS MacroZoom inspection system with autofocus, HDMI camera & LED ring light
The MZ.4700-HDS is a high-resolution, digital inspection system with HDMI camera, motorized autofocus zoom lens, tripod and LED lighting. It enables precise visual inspection directly on an HD screen - without a PC. The integrated software offers mouse control, image and video recording and screen measurement.
Areas of application:
- Industry and manufacturing
- Electronics testing and quality assurance
- Laboratory, R&D and technical training
- Repair and maintenance applications
SCOPE OF DELIVERY
Technical data
| Category | Technical Specification |
|---|---|
| zoom lens | |
| Optical zoom factor | 18× zoom lens |
| field of view | 255 × 145 mm (1×) to 14 × 8 mm (18×) |
| Screen magnification | 2.8× to 47× at 190 mm working distance |
| working distance | 8.1–8.9 inches |
| Camera (4K UHD) | |
| camera sensor | Sony CMOS sensor, 1/2.8", 2 megapixels |
| Maximum resolution | 3840 × 2160 pixels (4K UHD) |
| frame rate | Up to 60 frames per second |
| video output | HDMI connection (directly to HD screen) |
| data storage | Images (.jpg/.bmp) and videos (.mp4) on SD card |
| operating modes | Standalone operation or PC control (ImageFocus Alpha) |
| Software & Operation | |
| Operation | Integrated control via mouse |
| software features | Camera control, autofocus, screen measurement |
| PC required | No, operation and storage without a PC |
| Lighting | |
| standard lighting | LED ring light included in delivery |
| Optional lighting | Ring light with 12 × 1 W directional LEDs (30° beam angle) |
| Tripod & Mounting | |
| Tripod | Column tripod included in delivery |
| extensibility | Compatible with NexiusZoom tripod system |
Additional information
| Inspection systems | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
Data sheets
| TDS MacroZoom - EN | PDF(2.78 MB) |
|---|---|
| TDS MacroZoom - ENG | PDF(2.78 MB) |
| TDS MacroZoom - IT | PDF(2.78 MB) |
| User manual - EN | PDF(18.14 MB) |
| Manual - ENG | PDF(16.76 MB) |
