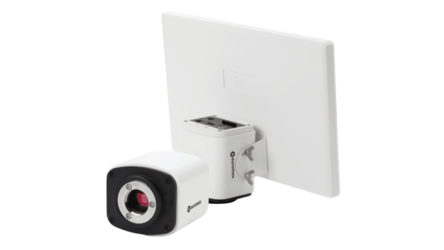

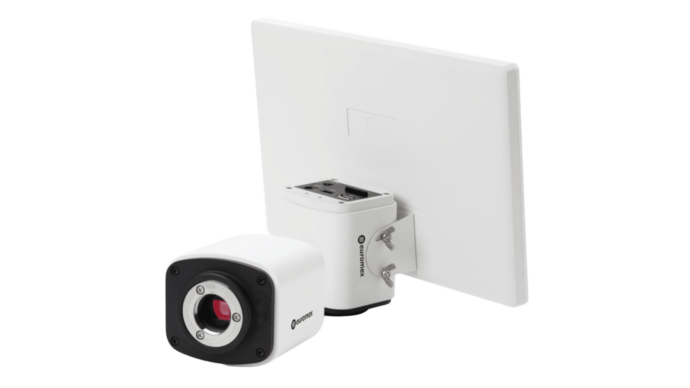

Camera HD Ultra, VC.3036-HDS,color,CMOS,1/2.8″,6 M,USB 2,HDMI,tablet 11.6″

Name: Euromex - Camera HD Ultra, VC.3036-HDS,color,CMOS,1/2.8",6 M,USB 2,HDMI,tablet 11.6"
Brand: Euromex
SKU: VC.3036-HDS
Price: 1740.00 CHF
Availability: InStock

CHF 1'740.00 excl. VAT, plus shipping costs

Item no: VC.3036-HDS

In stock: Available to order

Estimated delivery time: 1 week

Recommend:

Delivery time request Print PDF

Description

The Euromex HD-Ultra camera offers the perfect solution for modern microscopy for industry and laboratories where live images are required. This HD camera can be used for biological, metallurgical or stereo microscopes. High Definition HD1080p CMOS color camera with HDMI and USB-2 interface. The camera is equipped with highly sensitive sensors for low and intense light conditions. It is also suitable for coaxial lighting and machine vision applications. The live images produced with this camera provide excellent color reproduction at high frame rates up to 60 frames per second and the HD Ultra High Definition camera can be used in 2 modes; stand-alone with its embedded mouse software or in a computer controlled mode.

HIGHLIGHTS

HD 1080p high-definition color camera
Preview, images directly on the TV, monitor or projector
Can be used with or without a computer
Integrated mouse software
C-mount interface
HDMI, USB-2 and SD memory card
Compatible with ImageFocus Plus software
Available with 11.6-inch HD screen (VC.3036-HDS)

Technical data

Sensor HDMI 6.0 MP CMOS high-sensitivity SONY sensor
Sensor size 1/2.8 inch, HDTV 1080p (50/60 Hz)
Pixels 3264 x 1836 pixels (capture mode) 1920 x 1080 pixels (live preview)
HDMI 60 fps,
USB 30 fps
Video 1080p pixel video recording mode
Scan mode Progressive scan
Pixel size 2.8 µm x 2.8 µm
Noise 3D Noise reduction
Sensitivity 510 mV
Automatic/manual white balance
Dynamic range 69 db S/N max 55 db
Interface Digital HDMI, USB 2
Data storage: 16 Gb SD memory, card or via USB-2
Camera buttons On/Off
Optical interface C-mount interface
Power supply External power supply 100-240 Vac to 12 Vdc/2A
Operation 0 - 60° C, 45-85 % humidity
Storage temperature -20 to 70° Celsius
Operating system Windows 7 and higher and Capture software (Mac)

Scope of delivery

HDMI cable
USB 2 cable
12Vdc/2A power supply unit
16 Gb SD card
USB-2
0.37x C-mount adapter
Mouse software for image capture - 1080p HD video recording, image comparison and browsing of captured images and video
Object micrometer 1mm/100parts, 10 µm per part

Additional information

Inspection systems

Manufacturer	Euromex
Product	Digital microscope
Product series	HD-Ultra
ESD safe	No

LEDs
