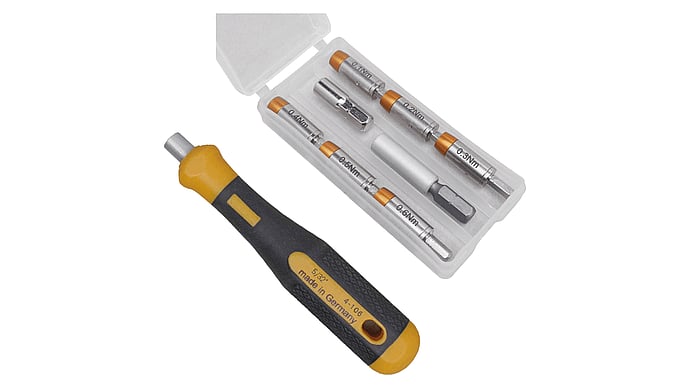

Torque adapter set 9 pcs 0.1 to 0.6 Nm for 4 mm bits +bit adapter +handle
CHF 126.00 excl. VAT, plus shipping costs
Description
ESD torque adapter set - preset torques for precise work on electronics & precision mechanics
Turn your 4 mm C4 bit and a holder into a precise torque tool. The pre-set torque values of the adapter enable precise work, ideal for sensitive electronic components. An audible clicking sound signals when the set torque has been reached.
Thanks to the locked core shaft, the adapter cannot be overtightened and no torque release is required when loosening - this enables up to 30 % higher torque when loosening. Primarily suitable for manual operation, a maximum speed of 100 rpm is recommended for power tools.
Areas of application include electronic devices, quick-change systems, robot stations, medical technology, aerospace and all workplaces where precise torque is required.
Technical data
- Preset torques (see parts list for contents)
- Tolerance: ± 10 % (factory certificate on request)
- Adapter: Ø 8 mm, length 22 mm (without shaft)
- Shank: hexagonal, 4.0 mm
- Bit magnet holder: 4.0 mm
- Max. Speed for power tool: 100 rpm
- Material: alloy steel, HRC 43-48
- 2 pieces bit adapter 1/4″ to 4 mm in plastic quadro box
- 1 aluminum bit holder, 1 chrome-plated steel bit holder
- Packaging: Plastic quadro box (91 × 43 × 15 mm)
- Weight: 108 g
Scope of delivery
- 4-971: Torque adapter 0.1Nm, for 4 mm bits
- 4-972: Torque adapter 0.2Nm, for 4 mm bits
- 4-973: Torque adapter 0.3Nm, for 4 mm bits
- 4-974: Torque adapter 0.4Nm, for 4 mm bits
- 4-975: Torque adapter 0.5Nm, for 4 mm bits
- 4-976: Torque adapter 0.6Nm, for 4 mm bits
- 4-564: Bit adapter 1/4 inch, 4 mm bits, length 42.5 mm
- 4-566: Bit adapter 1/4 inch, 4 mm bits, length 25 mm
- 4-106: Screwdriver handle 5/32 inch
